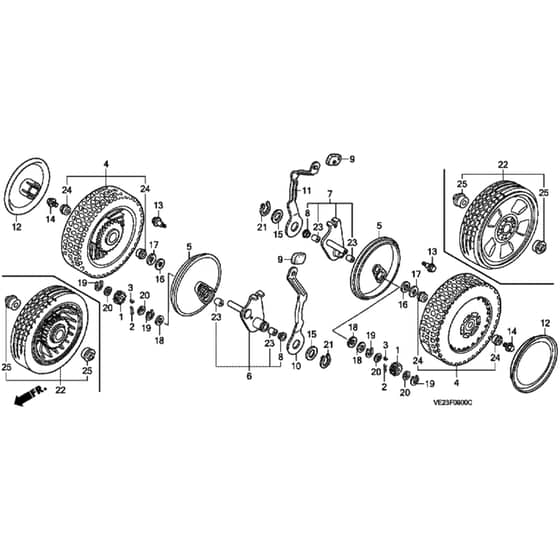

Honda HRB536C1 - HXEA - MZCB 6100001-6199999 Rear Wheel Diagram

Description

Honda HRB536C1 - HXEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP42661-VE2-800 In stock	Pinion Gear	£10.86 £9.05
2	HP42668-VE2-800 In stock	Pawl Spring	£1.21 £1.01
3	HP42672-VE2-800 In stock	Ratchet Key	£4.33 £3.61
5	HP42866-VE2-800 Available to backorder	Cover	£15.94 £13.28

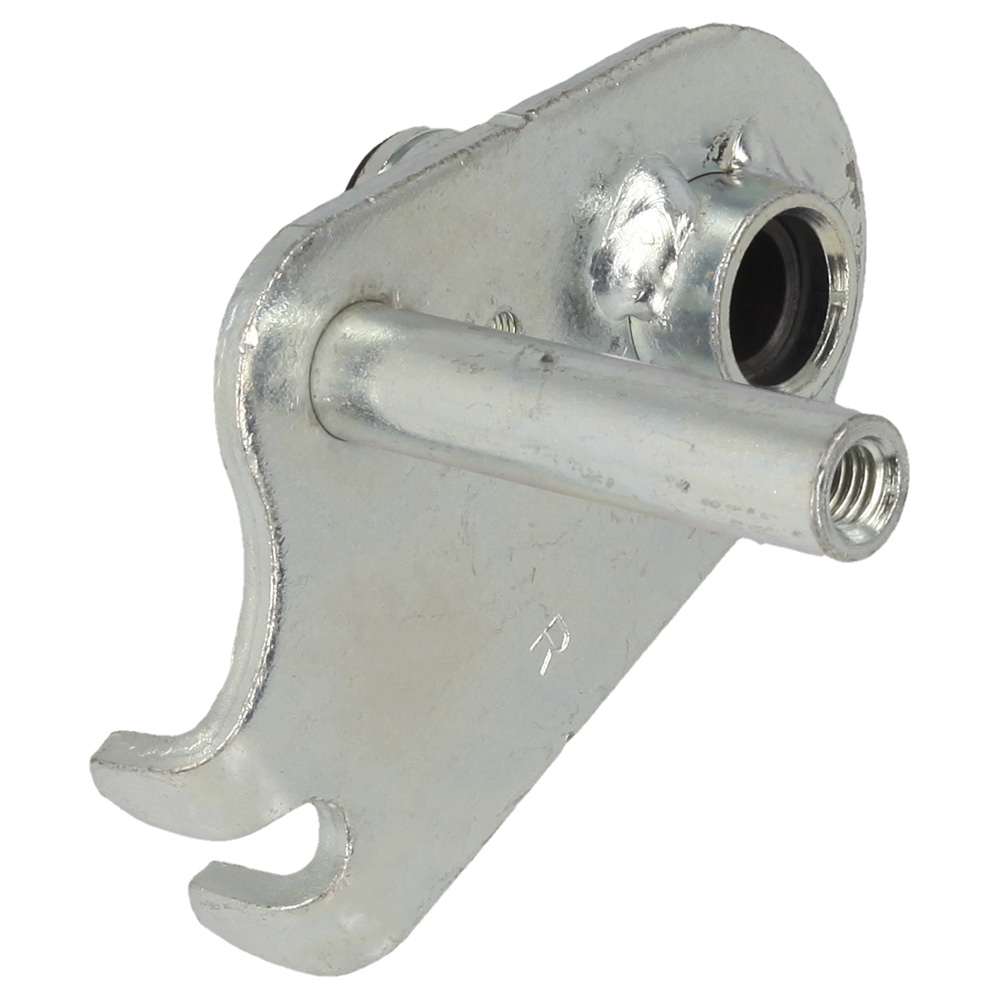

6	HP42930-VE2-405 Available to backorder	Adjuster Arm Assy Rear R H	£28.03 £23.36

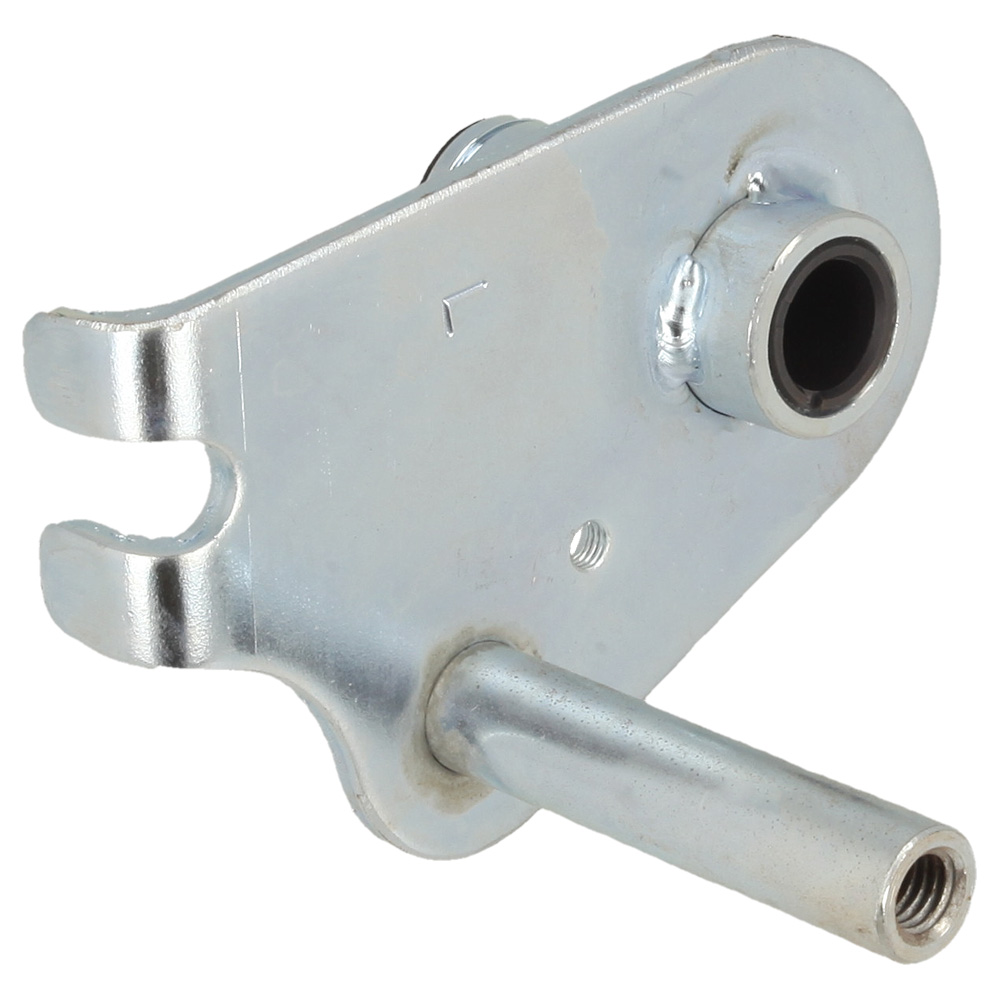

7	HP42940-VE2-405 Available to backorder	Adjuster Arm Front L H	£28.03 £23.36
8	HP42944-VE2-801 In stock	Dust Seal 12.7Mm	£10.07 £8.39
9	HP42952-VG3-000ZA Available to backorder	Adjuster Grip	£1.69 £1.41
10	HP42961-VE2-000 Available to backorder	Rear Adjuster Plate R H	£26.28 £21.90
11	HP42966-VE2-000 Available to backorder	Adjuster L H	£27.94 £23.28
13	HP90103-VE2-801 Available to backorder	Tapping Screw	£1.88 £1.57
14	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
15	HP90403-952-770 Available to backorder	Plain Washer 22mm	£3.56 £2.97
16	HP90505-VG3-000 Available to backorder	Thrust Washer 13 X 27 X 1	£1.03 £0.86
17	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
18	HP90502-VE2-800 In stock	Thrust Washer 13mm	£4.48 £3.73
19	HP90651-VE2-800 In stock	External Circlip 12.7mm	£1.69 £1.41
20	HP91559-VE2-800 In stock	Pinion Gear Collar	£1.81 £1.51
21	HP94511-22000 Available to backorder	External Circlip 22mm	£2.03 £1.69
22	HP42710-VE2-M02ZE In stock	Wheel	£54.26 £45.22
23	HP44327-VE2-801 In stock	Drive Shaft Bush	£9.13 £7.61
25	HP91056-VL0-B00 In stock	Bearing	£5.02 £4.18
