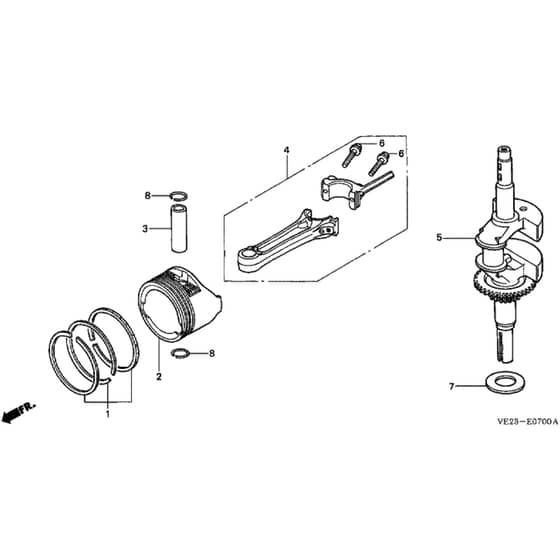

Honda HRB536C1 - HXEA - MZCB 6100001-6199999 Piston/Crankshaft Diagram

Description

Honda HRB536C1 - HXEA Rotary Mower Parts Diagram

	Part No.	Details
1	HP13010-Z0L-003 Available to backorder	Piston Ring Set	£32.53 £27.11
1	HP13010-Z0L-014 Available to backorder	Piston Ring Set - Std	£32.53 £27.11
2	HP13101-ZL8-000 Available to backorder	Piston	£43.45 £36.21
2	HP13101-Z2A-010 Available to backorder	Piston (eng no. 5383515 +)	£39.91 £33.26
2	HP13101-Z2A-000 Available to backorder	Piston (up to eng no. 5383514)	£39.91 £33.26
3	HP13111-ZE0-000 Available to backorder	Gudgeon Pin	£10.57 £8.81
4	HP13200-ZL8-000 Available to backorder	Connecting Rod Assy	£51.79 £43.16
5	HP13310-ZM0-640 Available to backorder	Crankshaft	£178.44 £148.70
6	HP90001-ZE1-000 Available to backorder	Connecting Rod Bolt	£3.52 £2.93
7	HP90402-ZL8-000 Available to backorder	Thrust Washer	£2.45 £2.04
8	HP90551-ZE0-000 Available to backorder	Gudgeon Pin Clip 13mm	£1.87 £1.56
