Honda HRB536C1 - HXE - MZCB 6100001-6199999 Front Wheel Diagram

Description

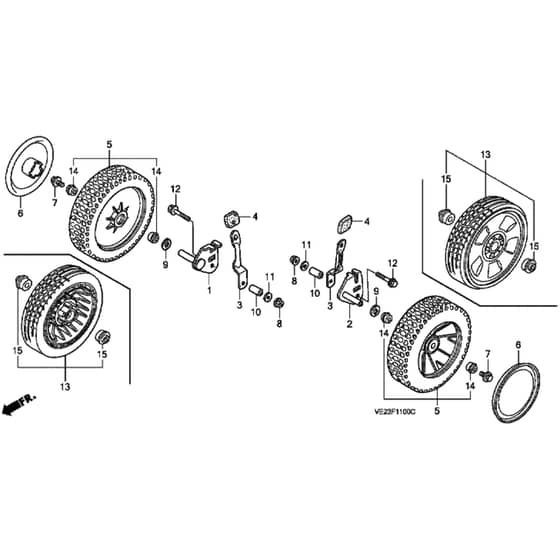

Honda HRB536C1 - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP42911-VE1-020 Available to backorder	Adjuster Arm Front R H	£23.27 £19.39
2	HP42921-VE1-020 Available to backorder	Adjuster Arm	£23.27 £19.39
3	HP42951-VE2-000 Available to backorder	Front Adjuster Plate	£17.48 £14.57
4	HP42952-VG3-000ZA Available to backorder	Adjuster Grip	£1.69 £1.41
7	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
8	HP90115-659-003 In stock	Nut	£1.19 £0.99
9	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
10	HP91557-VE0-000 Available to backorder	Arm Collar	£13.74 £11.45
11	HP94103-08000 In stock	Plain Washer 8mm	£0.56 £0.47
12	HP95801-0805000 Available to backorder	Flange Bolt 8 X 50	£2.69 £2.24
13	HP44710-VE2-M00ZA Available to backorder	Wheel	£44.74 £37.28
15	HP91056-VL0-B00 In stock	Bearing	£5.02 £4.18
