Honda HRB536C - SXF - MZCB 6000001-6099999 Throttle Lever (SXE, SXF) Diagram

Name: Honda HRB536C - SXF - MZCB 6000001-6099999 Throttle Lever (SXE, SXF) Diagram
SKU: hrb536c_sxf_mzcb_6000001_6099999_throttle_lever_sxe_sxf_-group
Price: 0.81 GBP
Availability: InStock

Part No. hrb536c_sxf_mzcb_6000001_6099999_throttle_lever_sxe_sxf_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

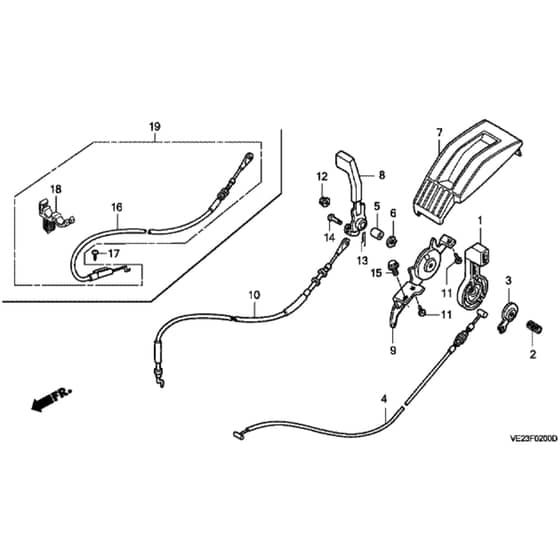

Honda HRB536C - SXF - MZCB 6000001-6099999 Throttle Lever (SXE, SXF) Diagram

Description

Honda HRB536C - SXF Rotary Mower Parts Diagram

	Part No.	Details
1	HP17851-VA3-D01 In stock	Throttle Lever	£17.32 £14.43
2	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.16 £3.47
3	HP17859-VA3-800 Available to backorder	Seat Spring	£6.46 £5.38
4	HP17910-VE1-R42 Available to backorder	Throttle Cable	£41.51 £34.59
5	HP19612-896-700 Available to backorder	Recoil Starter Collar	£3.14 £2.62
6	HP47363-671-300 Available to backorder	Wave Washer	£5.46 £4.55
7	HP54231-VA3-800 Available to backorder	Control Cover	£48.25 £40.21
8	HP54311-VA3-J00 Available to backorder	Change Lever	£59.12 £49.27
9	HP54315-VA3-P00 Available to backorder	Stopper Plate	£22.46 £18.72
10	HP54630-VE2-M00 Available to backorder	Speed Change Cable	£49.01 £40.84
11	HP93901-35210 Available to backorder	Tapping Screw	£1.51 £1.26
12	HP94050-06080 Available to backorder	Flange Nut 6Mm	£3.14 £2.62
13	HP94251-06000 In stock	Lock Pin 6Mm	£1.22 £1.02
14	HP95015-51000 Available to backorder	Brake Rod Joint Pin	£1.69 £1.41
15	HP95701-0601000 Available to backorder	Bolt	£0.97 £0.81
