Honda HRB536C - HXE - MZCB 6000001-6099999 Throttle Lever Diagram

Description

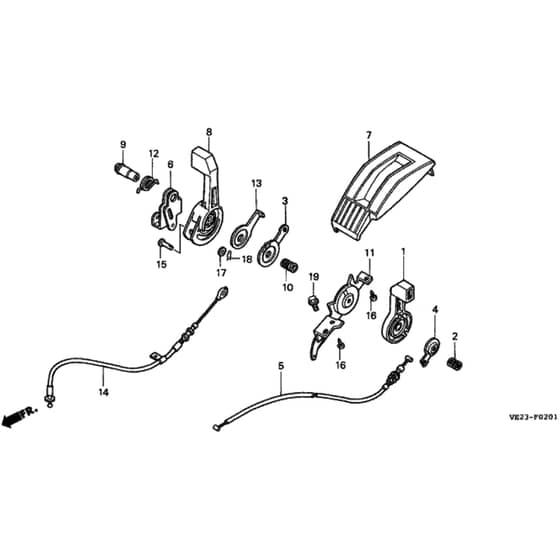

Honda HRB536C - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP17851-VA3-D01 In stock	Throttle Lever	£17.32 £14.43
2	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.16 £3.47
3	HP17859-VA3-P00 Available to backorder	Seat Spring	£6.46 £5.38
4	HP17859-VA3-800 Available to backorder	Seat Spring	£6.46 £5.38
5	HP17910-VE1-R42 Available to backorder	Throttle Cable	£41.51 £34.59
6	HP24412-VE0-J50 Available to backorder	Change Arm Lever	£19.20 £16.00
7	HP54231-VA3-800 Available to backorder	Control Cover	£48.25 £40.21
8	HP54311-VE0-J50 In stock	Change Lever	£17.53 £14.61
9	HP54313-VA3-P00 Available to backorder	Change Lever Nut	£7.78 £6.48
10	HP54314-VA3-P00 Available to backorder	Change Lever Spring	£3.05 £2.54
11	HP54315-VA3-P00 Available to backorder	Stopper Plate	£22.46 £18.72
12	HP54318-VA3-P00 Available to backorder	Arm Return Spring	£3.78 £3.15
13	HP54319-VA3-P00 Available to backorder	Thrust Plate	£15.91 £13.26
14	HP54630-VE1-J11 Available to backorder	Speed Change Cable	£57.02 £47.52
15	HP90752-VA3-P01 In stock	Pin 6 X 22	£3.35 £2.79
16	HP93901-35210 Available to backorder	Tapping Screw	£1.51 £1.26
17	HP94101-06000 Available to backorder	Plain Washer 6mm	£1.20 £1.00
18	HP94251-06000 In stock	Lock Pin 6mm	£1.22 £1.02
19	HP95701-0601000 Available to backorder	Bolt	£0.97 £0.81
