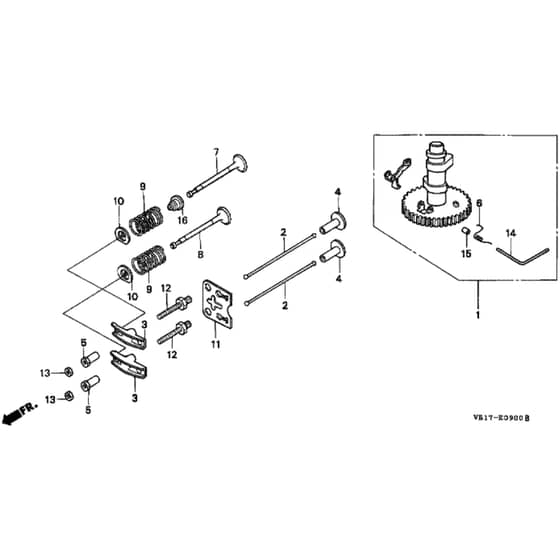

Honda HRB535K3 - HXE - MZBA 6300001-6399999 Camshaft Diagram

Description

Honda HRB535K3 - HXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP14100-ZG9-800 Available to backorder	Camshaft Assy	£101.40 £84.50
2	HP14410-ZE0-010 Available to backorder	Push Rod	£10.15 £8.46
3	HP14431-ZE1-000 In stock	Valve Rocker Arm	£10.22 £8.52
4	HP14441-ZE1-010 Available to backorder	Valve Lifter	£20.76 £17.30
5	HP14451-ZE1-013 Available to backorder	Rocker Pivot Nut	£5.48 £4.57
7	HP14711-ZG9-810 Available to backorder	Inlet Valve	£22.86 £19.05
8	HP14721-ZG9-810 Available to backorder	Exhaust Valve	£36.06 £30.05
9	HP14751-ZF1-000 Available to backorder	Valve Spring	£4.33 £3.61
10	HP14771-ZE1-000 Available to backorder	Exhaust Valve Spring Retainer	£9.19 £7.66
11	HP14791-ZE0-010 Available to backorder	Push Rod Guide Plate	£4.64 £3.87
12	HP90012-ZE0-010 Available to backorder	Pivot Bolt	£9.37 £7.81
13	HP90206-ZE1-000 Available to backorder	Adjusting Pivot Nut	£2.27 £1.89
14	HP90701-ZG9-800 Available to backorder	Pin	£2.56 £2.13
15	HP91502-ZG9-800 Available to backorder	Collar	£2.36 £1.97
