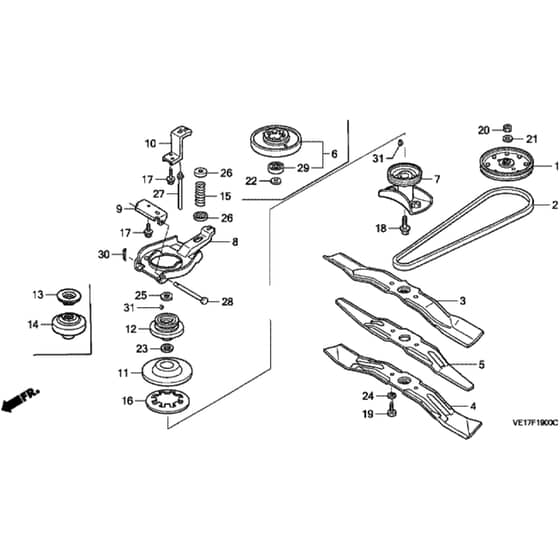

Honda HRB535K2 - SXF - MZBA 6200001-6299999 Rotary Blade Diagram

Name: Honda HRB535K2 - SXF - MZBA 6200001-6299999 Rotary Blade Diagram
SKU: hrb535k2_sxf_mzba_6200001_6299999_rotary_blade-group
Price: 0.45 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB535K2 - SXF - MZBA 6200001-6299999 Rotary Blade Diagram

Description

Honda HRB535K2 - SXF Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP22420-VE2-J00 Available to backorder	Pulley	£58.08 £48.40
1	HP22420-VE2-M00 In stock	Pulley	Was £66.58 £55.48 Special Price £35.99 £29.99
2	HP22431-VE2-801 Available to backorder	Belt	£35.93 £29.94
2	HP22431-VE2-J00 Available to backorder	Belt	£34.51 £28.76
3	HP72511-VE1-652 In stock	Blade	£47.76 £39.80
6	HP72600-VE0-000 Available to backorder	Blade Holder Assy	£86.40 £72.00
8	HP75130-VE0-020 Available to backorder	Brake Arm Assy	£88.08 £73.40
9	HP75148-VE0-000 Available to backorder	Clutch Arm Hinge	£7.34 £6.12
10	HP75149-VE0-000 Available to backorder	Holder	£24.72 £20.60
11	HP75151-VE0-000 Available to backorder	Driven Disk	£167.78 £139.82
12	HP06751-VE1-305 Available to backorder	Pulley Kit	£117.16 £97.63
13	HP75161-VE2-801 Available to backorder	Pulley	£82.72 £68.93
14	HP75162-VE2-801 Available to backorder	Pulley	£84.36 £70.30
15	HP75182-VE0-000 Available to backorder	Clutch Return Spring	£12.12 £10.10
16	HP75183-VE0-000 Available to backorder	Clutch Spring	£35.34 £29.45
17	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.73 £3.11
18	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£4.08 £3.40
19	HP90105-960-710 In stock	Blade Bolt	£2.76 £2.30
20	HP90304-GA6-003 Available to backorder	Nut	£4.92 £4.10
20	HP90301-VE2-800 Available to backorder	Nut	£6.19 £5.16
21	HP90405-KV3-000 Available to backorder	Thrust Washer	£3.71 £3.09
22	HP90409-952-000 In stock	Washer 10Mm	£1.10 £0.92
23	HP90453-KZ4-000 Available to backorder	Thrust Washer	£5.16 £4.30
24	HP90481-430-000 In stock	Washer	£1.20 £1.00
25	HP90501-952-010 Available to backorder	Thrust Washer	£5.39 £4.49
26	HP90557-461-000 Available to backorder	Washer	£2.33 £1.94
27	HP90701-VE0-000 Available to backorder	Spring Guide Pin	£17.44 £14.53
28	HP90756-735-000 Available to backorder	Bonnet Hinge Pin	£8.24 £6.87
29	HP91102-VA4-013 Available to backorder	Bearing	£25.38 £21.15
30	HP94201-20150 Available to backorder	Split Pin 2.0 X 15	£1.37 £1.14
31	HP94401-16150 In stock	Woodruff Key	£0.54 £0.45
