Honda HRB535K2 - SXF - MZBA 6200001-6299999 Cylinder Head Diagram

Name: Honda HRB535K2 - SXF - MZBA 6200001-6299999 Cylinder Head Diagram
SKU: hrb535k2_sxf_mzba_6200001_6299999_cylinder_head-group
Price: 0.78 GBP
Availability: InStock

Part No. hrb535k2_sxf_mzba_6200001_6299999_cylinder_head-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB535K2 - SXF - MZBA 6200001-6299999 Cylinder Head Diagram

Description

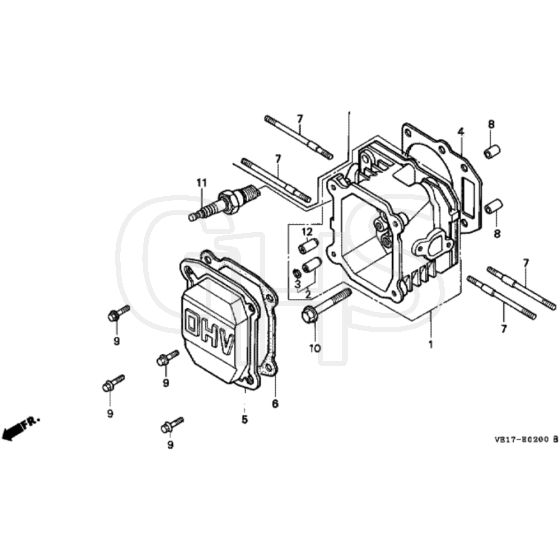

Honda HRB535K2 - SXF Rotary Mower Parts Diagram

	Part No.	Details
1	HP12200-ZG9-P41 Available to backorder	Cylinder Head Assy	£160.44 £133.70
2	HP12205-ZE1-315 Available to backorder	Exhaust Valve Guide	£12.71 £10.59
3	HP12216-ZE5-300 Available to backorder	Valve Guide Clip	£3.73 £3.11
4	HP12251-ZG9-000 Available to backorder	Cylinder Head Gasket	£11.34 £9.45
5	HP12311-ZG9-800 Out of stock	Rocker Cover	£23.38 £19.48
6	HP12391-ZG9-800 Available to backorder	Rocker Cover Gasket	£10.91 £9.09
7	HP90013-ZG9-T00 Available to backorder	Stud 6 X 83	£5.06 £4.22
8	HP94301-10160 Available to backorder	Dowel Pin 10 X 16	£3.96 £3.30
9	HP95701-0601400 Available to backorder	Flange Bolt 6 X 14	£0.94 £0.78
9	HP957001-061600 Available to backorder	Bolt	£1.12 £0.93
10	HP95701-0805000 Available to backorder	Bolt	£2.38 £1.98
11	7230 In stock	Spark Plug	£3.76 £3.13
11	2136 In stock	Plug Spark (Bpr6Es) (Ngk)	£2.81 £2.34
11	2135 In stock	Spark Plug	£2.78 £2.32
12	HP12204-ZE1-306 Available to backorder	Inlet Valve Guide	£11.28 £9.40
