Honda HRB535K2 - HXE - MZBA 6200001-6299999 Front Wheel Diagram

Description

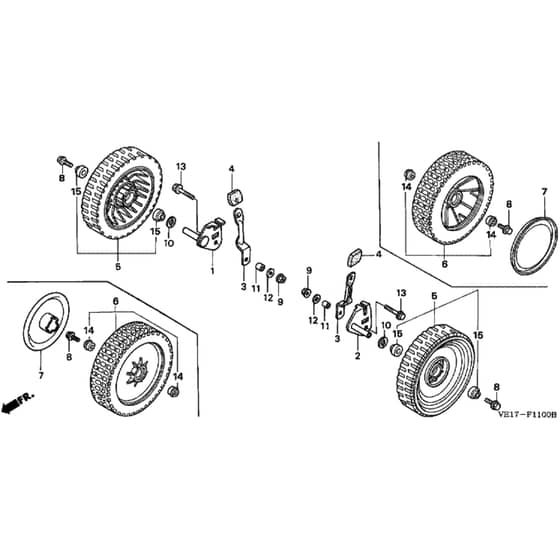

Honda HRB535K2 - HXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP42911-VE1-020 Available to backorder	Adjuster Arm Front R H	£23.62 £19.68
2	HP42921-VE1-020 Available to backorder	Adjuster Arm	£23.62 £19.68
3	HP42951-VE2-000 Available to backorder	Front Adjuster Plate	£16.55 £13.79
4	HP42952-VG3-000ZA Available to backorder	Adjuster Grip	£1.76 £1.47
5	HP44710-VE0-000 Available to backorder	Front Wheel	£40.16 £33.47
8	HP90110-VA4-000 In stock	Wheel Bolt	£5.76 £4.80
9	HP90115-659-003 In stock	Nut	£1.10 £0.92
10	HP90455-VA2-000 Available to backorder	Wheel Washer	£2.88 £2.40
11	HP91557-VE0-000 Available to backorder	Arm Collar	£13.68 £11.40
12	HP94103-08000 In stock	Plain Washer 8mm	£0.47 £0.39
13	HP95801-0805000 Available to backorder	Flange Bolt 8 X 50	£2.60 £2.17
15	HP91055-VA4-K10 Available to backorder	Bearing	£8.62 £7.18
