Honda HRB535K1 - SXG - MZBA 6100001-6199999 Carburettor Diagram

Description

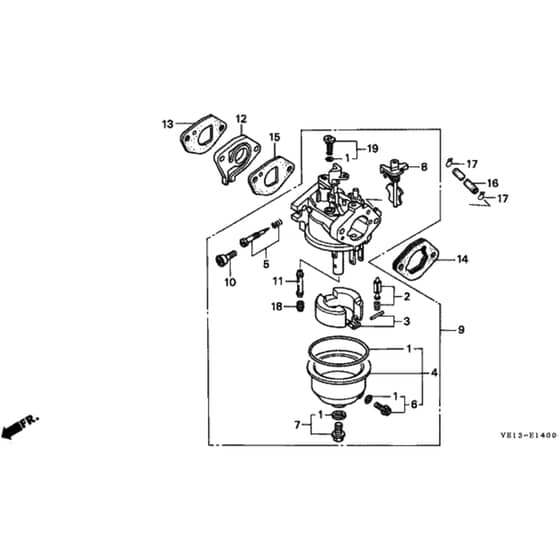

Honda HRB535K1 - SXG Rotary Mower Parts Diagram

	Part No.	Details
1	HP16010-ZB1-015 Available to backorder	Gasket Set	£25.40 £21.17
2	HP16011-ZE0-005 Available to backorder	Float Valve Set	£31.69 £26.41
3	HP16013-ZE0-005 Available to backorder	Float Set	£34.43 £28.69
4	HP16015-ZE0-831 Available to backorder	Float Bowl Set	£45.56 £37.97
5	HP16016-ZA0-931 Available to backorder	Pilot Screw Set	£14.30 £11.92
6	HP16024-ZE1-811 Available to backorder	Drain Screw Set	£13.69 £11.41
7	HP16028-ZK7-S91 In stock	Screw Set	£14.34 £11.95
8	HP16044-ZE7-005 Available to backorder	Choke Set	£38.51 £32.09
9	HP16100-ZG9-N11 Available to backorder	Carburettor Assy	£121.80 £101.50
10	HP16124-ZE0-005 Available to backorder	Throttle Stop Screw	£13.04 £10.87
11	HP16166-ZG9-M11 Available to backorder	Main Nozzle	£37.45 £31.21
12	HP16211-ZG9-000 In stock	Carburettor Insulator	£16.27 £13.56
13	HP16212-ZG9-T00 In stock	Carburettor Gasket	£0.86 £0.72
14	HP16220-ZE6-010 In stock	Carburettor Spacer	£7.52 £6.27
15	HP16221-ZG9-T00 In stock	Carburettor Gasket	£4.32 £3.60
17	HP95002-02080 In stock	Tube Clip	£1.19 £0.99
18	HP99101-ZH7-0500 Available to backorder	Jet	£10.31 £8.59
18	HP99101-ZH7-0520 Available to backorder	Jet	£8.44 £7.03
18	HP99101-ZH7-0550 Available to backorder	Main Jet	£10.18 £8.48
19	HP99204-ZE0-0350 Available to backorder	Jet Kit	£25.63 £21.36
