Honda HRB535 - SXG - MZBA 6000001-6099999 Transmission Diagram

Name: Honda HRB535 - SXG - MZBA 6000001-6099999 Transmission Diagram
SKU: hrb535_sxg_mzba_6000001_6099999_transmission-group
Price: 2.34 GBP
Availability: InStock

Part No. hrb535_sxg_mzba_6000001_6099999_transmission-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB535 - SXG - MZBA 6000001-6099999 Transmission Diagram

Description

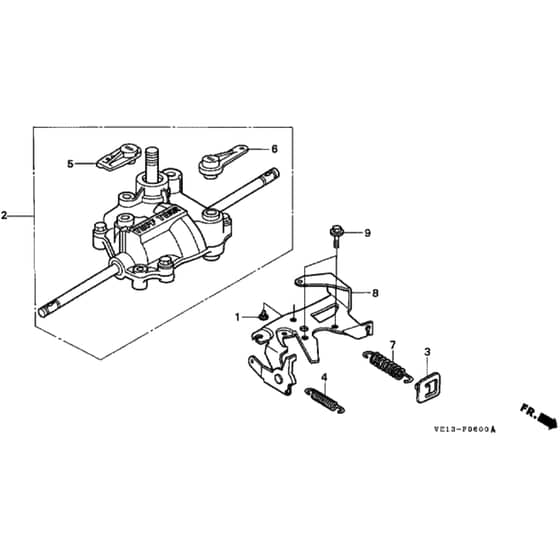

Honda HRB535 - SXG Rotary Mower Parts Diagram

	Part No.	Details
1	HP17502-GAA-000 Available to backorder	Stopper	£3.11 £2.59
2	HP06200-VE2-802 Available to backorder	Transmission Kit	£210.72 £175.60
3	HP21557-VE2-800 Available to backorder	Tension Spring Plate	£9.46 £7.88
4	HP22624-VE2-801 Available to backorder	Clutch Return Ball Spring	£10.51 £8.76
4	HP22624-VE2-M01 Available to backorder	Clutch Return Spring	£2.81 £2.34
5	HP22811-VE2-801 Available to backorder	Clutch Arm	£16.51 £13.76
6	HP24361-VE2-801 Available to backorder	Change Arm	£12.43 £10.36
7	HP24468-VE2-800 Available to backorder	Wheel Tension Spring	£9.46 £7.88
8	HP51120-VE2-800 Available to backorder	Holder	£48.17 £40.14
8	HP51120-VE2-M00 Available to backorder	Wire Holder	£56.48 £47.07
9	HP90031-883-000 Available to backorder	Flange Bolt 8 X 16	£6.37 £5.31
