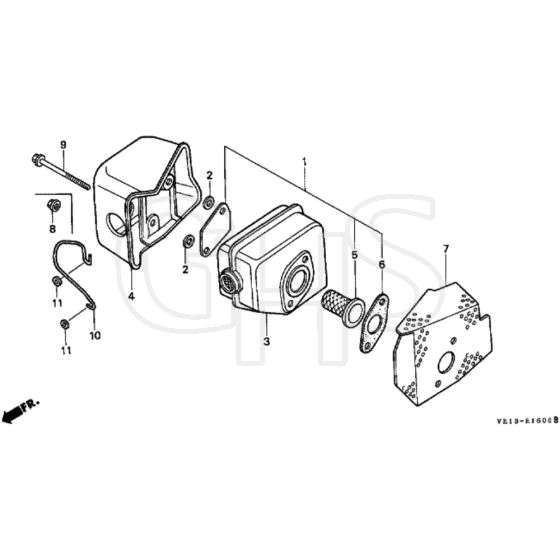

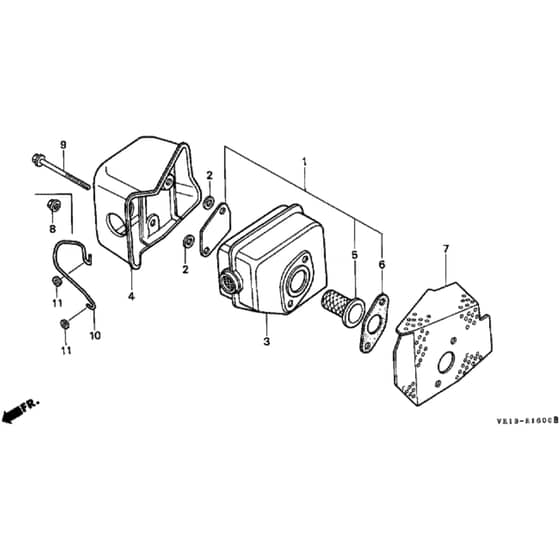

Honda HRB535 - SXG - MZBA 6000001-6099999 Muffler Diagram

Description

Honda HRB535 - SXG Rotary Mower Parts Diagram

	Part No.	Details
1	HP06180-ZE6-820	Spark Arrester	Out of stock	£24.47 £20.39
2	HP18292-ZE7-M10	Protector Gasket	Out of stock	£3.52 £2.93
3	HP18310-ZG9-J01	Exhaust	Out of stock	£108.29 £90.24
4	HP18320-ZG9-M01	Exhaust Protector	Out of stock	£43.80 £36.50
4	HP18320-ZG9-M11	Exhaust Protector	Out of stock	£38.14 £31.78
5	HP18355-888-810	Spark Arrester	Out of stock	£22.42 £18.68
6	HP18381-ZE6-810	Gasket	Out of stock	£5.69 £4.74
7	HP18381-ZG9-M00	Exhaust Gasket	In stock	£13.21 £11.01
8	HP90308-SA0-981	Lock Nut	Out of stock	£5.04 £4.20

Honda HRB535 - SXG Rotary Mower Parts Diagram
