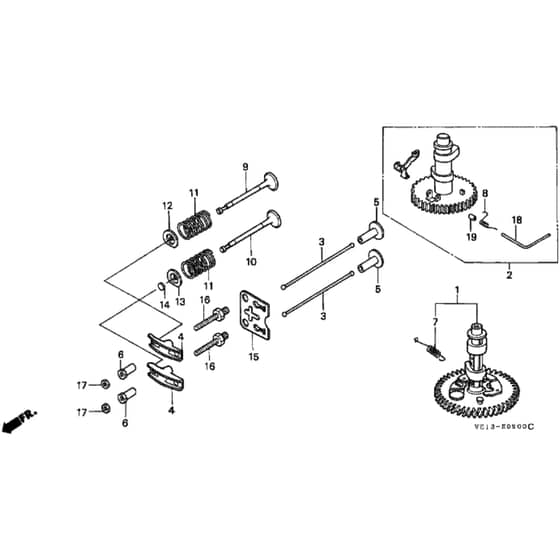

Honda HRB535 - SXG - MZBA 6000001-6099999 Camshaft Diagram

Description

Honda HRB535 - SXG Rotary Mower Parts Diagram

	Part No.	Details
1	HP14100-ZE6-W00 Available to backorder	Camshaft Assy	£127.20 £106.00
3	HP14410-ZE0-010 Available to backorder	Push Rod	£10.15 £8.46
4	HP14431-ZE1-000 In stock	Valve Rocker Arm	£10.22 £8.52
5	HP14441-ZE1-010 Available to backorder	Valve Lifter	£20.76 £17.30
6	HP14451-Z4M-000 Available to backorder	Rocker Arm Pivot	£5.48 £4.57
7	HP14568-ZE1-000 Available to backorder	Weight Return Spring	£2.26 £1.88
9	HP14711-ZE0-010 Available to backorder	Inlet Valve	£22.86 £19.05
10	HP14721-ZE0-810 In stock	Exhaust Valve	Was £51.77 £43.14 Special Price £11.99 £9.99
11	HP14751-ZE1-000 Available to backorder	Valve Spring	£5.04 £4.20
12	HP14771-ZE1-000 Available to backorder	Exhaust Valve Spring Retainer	£9.19 £7.66
13	HP14773-ZE1-000 Available to backorder	Exhaust Valve Spring Retainer	£9.22 £7.68
14	HP14781-ZE1-000 Available to backorder	Rotator Valve	£6.56 £5.47
15	HP14791-ZE0-010 Available to backorder	Push Rod Guide Plate	£4.64 £3.87
16	HP90012-ZE0-010 Available to backorder	Pivot Bolt	£9.37 £7.81
17	HP90206-ZE1-000 Available to backorder	Adjusting Pivot Nut	£2.27 £1.89
