Honda HRB535 - SXE - MZBA 6000001-6099999 Fan Cover Diagram

Name: Honda HRB535 - SXE - MZBA 6000001-6099999 Fan Cover Diagram
SKU: hrb535_sxe_mzba_6000001_6099999_fan_cover-group
Price: 0.99 GBP
Availability: InStock

Part No. hrb535_sxe_mzba_6000001_6099999_fan_cover-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB535 - SXE - MZBA 6000001-6099999 Fan Cover Diagram

Description

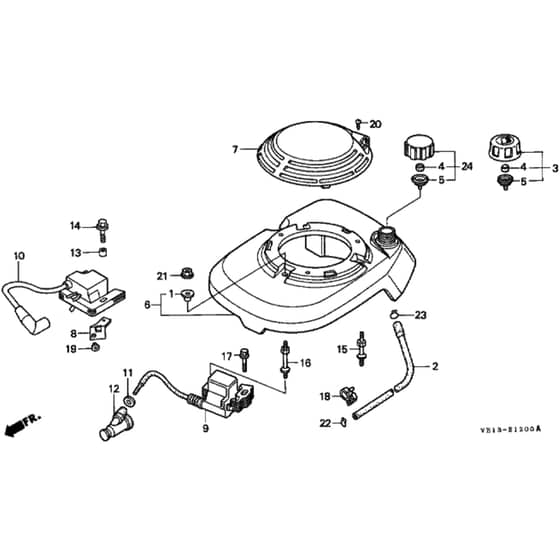

Honda HRB535 - SXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP17216-PE2-003 Available to backorder	Collar	£5.93 £4.94
2	HP17522-ZG9-M10 Available to backorder	Fuel Pipe	£10.74 £8.95
4	HP17622-888-010 In stock	Breather Sponge	£1.63 £1.36
5	HP17624-ZE7-000 In stock	Fuel Cap Gasket	£3.55 £2.96
6	HP19610-ZG9-M01 Available to backorder	Fan Cover Assy	£78.24 £65.20
7	HP19615-ZG9-M00ZB Available to backorder	Hood	£38.26 £31.88
9	HP30500-ZE7-063 Available to backorder	Ignition Coil Assy	£144.48 £120.40
11	HP30505-ZE6-000 Available to backorder	Grommet	£3.05 £2.54
12	HP30700-ZE6-773 Available to backorder	Terminal Assy	£20.00 £16.67
15	HP90041-ZG9-M00 Available to backorder	Stud	£12.43 £10.36
17	HP90121-952-000 Available to backorder	Flange Bolt 6 X 25	£2.88 £2.40
18	HP90682-959-661 Available to backorder	Cable Clip 9mm	£3.06 £2.55
20	HP93913-24580 Out of stock	Screw	£1.51 £1.26
21	HP94050-06000 In stock	Flange Nut 6mm	£3.37 £2.81
22	HP95002-02080 In stock	Tube Clip	£1.19 £0.99
22	HP95002-02100 In stock	Tube Clip	£1.31 £1.09
24	HP17620-ZE7-000 Available to backorder	Fuel Cap Assy	£15.47 £12.89
