Honda HRB535 - SXE - MZBA 6000001-6099999 Cylinder Head Diagram

Name: Honda HRB535 - SXE - MZBA 6000001-6099999 Cylinder Head Diagram
SKU: hrb535_sxe_mzba_6000001_6099999_cylinder_head-group
Price: 1.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

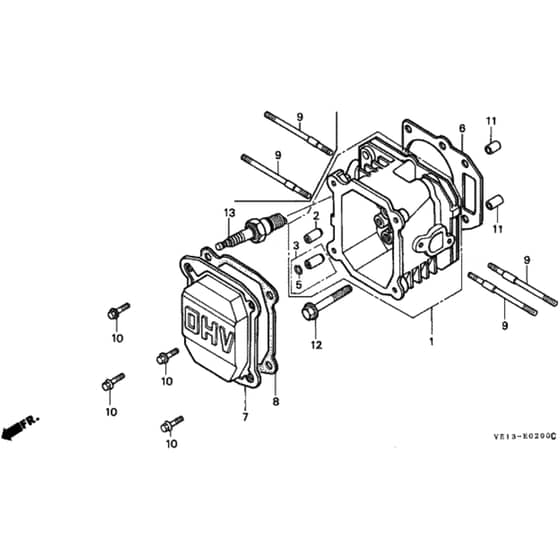

Honda HRB535 - SXE - MZBA 6000001-6099999 Cylinder Head Diagram

Description

Honda HRB535 - SXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP12200-ZG9-T00 Available to backorder	Cylinder Head (up to ser no. 6324985)	£221.24 £184.37
1	HP12200-ZG9-P41 Available to backorder	Cylinder Head (ser no. 6324986 +)	£157.92 £131.60
2	HP12204-ZE1-306 Available to backorder	Inlet Valve Guide	£11.17 £9.31
3	HP12205-ZE1-315 Available to backorder	Exhaust Valve Guide	£12.60 £10.50
5	HP12216-ZE5-300 Available to backorder	Valve Guide Clip	£3.70 £3.08
6	HP12251-ZG9-000 Available to backorder	Cylinder Head Gasket	£11.23 £9.36
7	HP12311-ZG9-000 Available to backorder	Head Cover	£76.24 £63.53
8	HP12391-ZE7-M10 In stock	Rocker Cover Gasket	Was £15.44 £12.87 Special Price £9.59 £7.99
9	HP90013-ZG9-T00 Available to backorder	Stud 6 X 83	£5.02 £4.18
10	HP90016-ZE6-T00 Available to backorder	Flange Bolt 6 X 13	£3.48 £2.90
11	HP94301-10160 Available to backorder	Dowel Pin 10 X 16	£3.84 £3.20
12	HP95701-0805000 Available to backorder	Bolt	£2.35 £1.96
13	7230 In stock	Spark Plug	£3.59 £2.99
13	2136 In stock	Spark Plug	£2.10 £1.75
13	2135 In stock	Spark Plug	£2.30 £1.92
