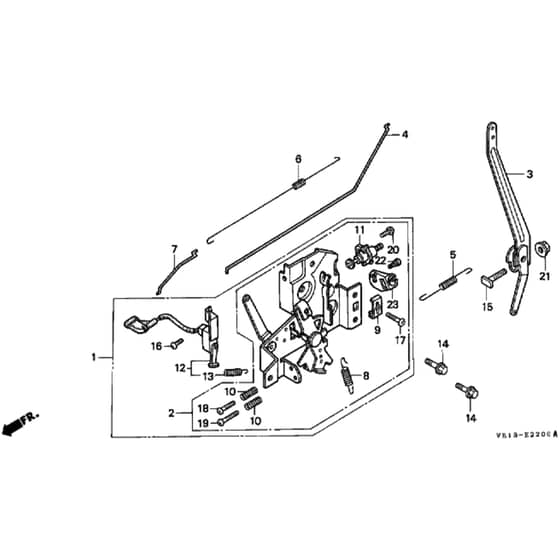

Honda HRB535 - SXE Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Control Assy (up to ser no. 6324985)
Control Assy (up to ser no. 6324985)
HP16500-ZG9-M01 Out of stock
Control Assy (up to ser no. 6324985)
£127.70 £106.42

  1 Control Assy (ser no. 6324986 +)
Control Assy (ser no. 6324986 +)
HP04102-ZG9-M10 Out of stock
Control Assy (ser no. 6324986 +)
£446.04 £371.70

  4 Governor Rod
Governor Rod
HP16555-ZE6-000 Out of stock
Governor Rod
£6.23 £5.19

  5 Governor Spring
Governor Spring
HP16561-ZE6-010 Out of stock
Governor Spring
£4.42 £3.68

  6 Throttle Return Spring
Throttle Return Spring
HP16562-ZE6-000 Out of stock
Throttle Return Spring
£6.38 £5.32

  7 Choke Rod
Choke Rod
HP16573-ZE6-010 Out of stock
Choke Rod
£3.66 £3.05

  8 Lever Spring
Lever Spring
HP16574-ZG9-M00 Out of stock
Lever Spring
£3.16 £2.63

  9 Cable Holder
Cable Holder
HP16576-891-000 Out of stock
Cable Holder
£4.16 £3.47

  10 Control Adjusting Spring
Control Adjusting Spring
HP16584-883-300 Out of stock
Control Adjusting Spring
£5.14 £4.28

  11 Fuel Tap Assy (up to ser no. 6324985)
Fuel Tap Assy (up to ser no. 6324985)
HP16950-ZG9-M00 Out of stock
Fuel Tap Assy (up to ser no. 6324985)
£42.88 £35.73

  11 Fuel Tap Assy (ser no. 6324986 +)
Fuel Tap Assy (ser no. 6324986 +)
1271 In stock
Fuel Tap Assy (ser no. 6324986 +)
£5.06 £4.22

  12 Engine Stop Switch Assy
Engine Stop Switch Assy
HP36100-ZE6-003 Out of stock
Engine Stop Switch Assy
£32.94 £27.45

  13 Switch Control Spring
Switch Control Spring
HP36120-ZE6-010 Out of stock
Switch Control Spring
£2.81 £2.34

  14 Flange Bolt 6 X 14
Flange Bolt 6 X 14
HP90014-952-000 Out of stock
Flange Bolt 6 X 14
£3.95 £3.29

  15 Governor Arm Bolt
Governor Arm Bolt
HP90015-ZE5-010 Out of stock
Governor Arm Bolt
£3.56 £2.97

  16 Screw
Screw
HP93500-040080A Out of stock
Screw
£1.69 £1.41

  17 Screw Pan 5 X 16
Screw Pan 5 X 16
HP93500-050160A Out of stock
Screw Pan 5 X 16
£1.55 £1.29

  18 Screw Pan 5 X 20
Screw Pan 5 X 20
HP93500-050200A Out of stock
Screw Pan 5 X 20
£1.55 £1.29

  19 Screw
Screw
HP93500-05025-0A Out of stock
Screw
£1.80 £1.50

  20 Screw
Screw
HP93892-05012-00 Out of stock
Screw
£0.52 £0.43

  21 Flange Nut 6mm
Flange Nut 6mm
HP94050-06000 In stock
Flange Nut 6mm
£4.01 £3.34

  22 Shoulder Bolt
Shoulder Bolt
HP90006-ZG9-M00 Out of stock
Shoulder Bolt
£1.82 £1.52

  23 Fuel Tap Bracket
Fuel Tap Bracket
HP16956-ZM0-000 Out of stock
Fuel Tap Bracket
£3.53 £2.94
