Honda HRB535 - PXG - MZBA 6000001-6099999 Rotary Blade Diagram

Description

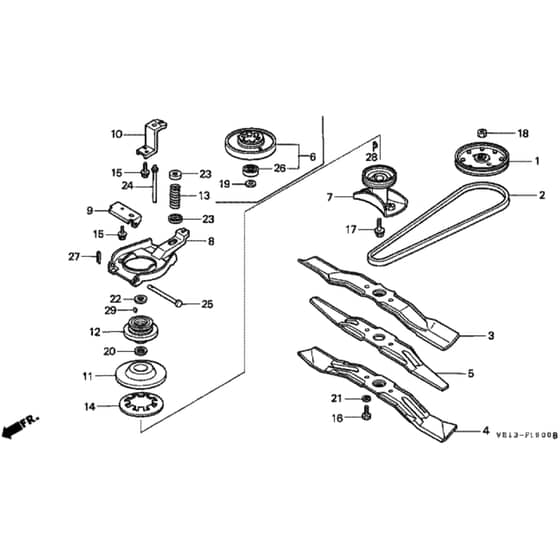

Honda HRB535 - PXG Rotary Mower Parts Diagram

	Part No.	Details
3	HP72511-VE1-652 In stock	Blade	£52.20 £43.50
6	HP72600-VE0-000 Available to backorder	Blade Holder Assy	£85.68 £71.40
9	HP75148-VE0-000 Available to backorder	Clutch Arm Hinge	£7.24 £6.03
10	HP75149-VE0-000 Available to backorder	Holder	£25.57 £21.31
11	HP75151-VE0-000 Available to backorder	Driven Disk	£161.04 £134.20
12	HP06751-VE1-305 In stock	Pulley Kit	£119.52 £99.60
13	HP75182-VE0-000 Available to backorder	Clutch Return Spring	£12.12 £10.10
14	HP75183-VE0-000 Available to backorder	Clutch Spring	£34.34 £28.62
15	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
16	HP90105-960-710 In stock	Blade Bolt	£2.99 £2.49
17	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£4.38 £3.65
19	HP90409-952-000 In stock	Washer 10Mm	£1.21 £1.01
20	HP90453-KZ4-000 Available to backorder	Thrust Washer	£5.14 £4.28
21	HP90481-430-000 In stock	Washer	£1.28 £1.07
22	HP90501-952-010 Available to backorder	Thrust Washer	£5.44 £4.53
23	HP90557-461-000 Available to backorder	Washer	£2.03 £1.69
24	HP90701-VE0-000 Available to backorder	Spring Guide Pin	£17.44 £14.53
25	HP90756-735-000 Available to backorder	Bonnet Hinge Pin	£8.12 £6.77
26	HP91102-VA4-013 In stock	Bearing	£27.20 £22.67
27	HP94201-20150 Available to backorder	Split Pin 2.0 X 15	£1.39 £1.16
28	HP94401-16150 In stock	Woodruff Key	£0.59 £0.49
29	HP90751-VE2-M00 Available to backorder	Woodruff Key	£0.35 £0.29
