Honda HRB535 - PXE - MZBA 6000001-6099999 Rear Wheel Diagram

Name: Honda HRB535 - PXE - MZBA 6000001-6099999 Rear Wheel Diagram
SKU: hrb535_pxe_mzba_6000001_6099999_rear_wheel_1_-group
Price: 1.41 GBP
Availability: InStock

Part No. hrb535_pxe_mzba_6000001_6099999_rear_wheel_1_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

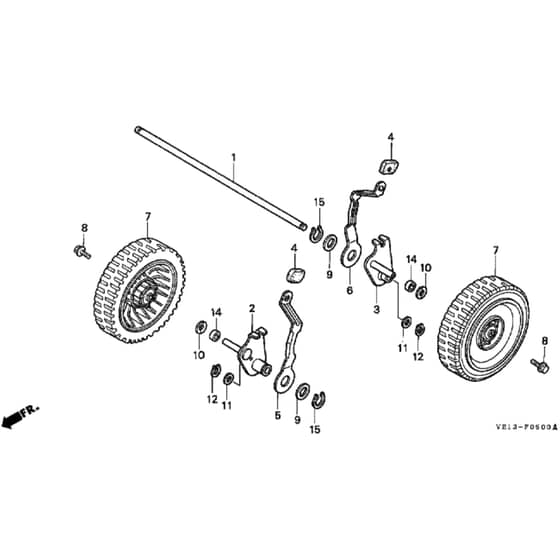

Honda HRB535 - PXE - MZBA 6000001-6099999 Rear Wheel Diagram

Description

Honda HRB535 - PXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP23371-VE2-000 Available to backorder	Wheel Shaft	£25.09 £20.91
2	HP42930-VE2-010 Available to backorder	Adjuster Arm	£27.02 £22.52
3	HP42940-VE2-030 Available to backorder	Adjuster Arm Front L H	£60.18 £50.15
4	HP42952-VA4-000 In stock	Adjuster Grip	£1.76 £1.47
5	HP42961-VE2-000 Available to backorder	Rear Adjuster Plate R H	£26.28 £21.90
6	HP42966-VE2-000 Available to backorder	Adjuster L H	£27.94 £23.28
7	HP44710-VE0-000 Available to backorder	Front Wheel	£39.58 £32.98
8	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
9	HP90403-952-770 Available to backorder	Plain Washer 22mm	£3.56 £2.97
10	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
11	HP90502-VE2-800 In stock	Thrust Washer 13mm	£4.48 £3.73
12	HP90651-VE2-800 In stock	External Circlip 12.7mm	£1.69 £1.41
14	HP91556-VE2-000 Available to backorder	Collar	£7.01 £5.84
15	HP94511-22000 Available to backorder	External Circlip 22mm	£2.03 £1.69
