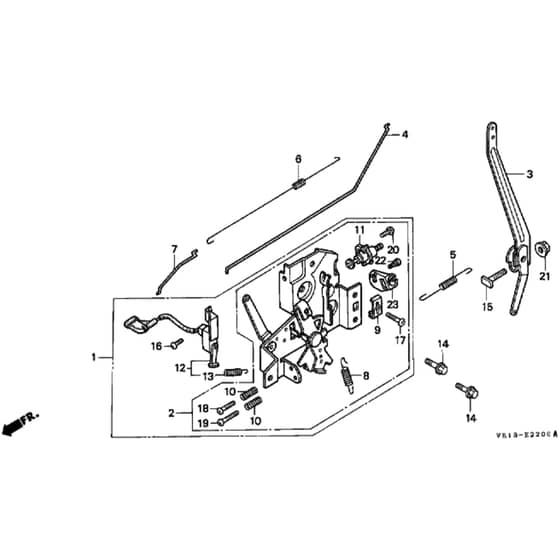

Honda HRB535 - PXE - MZBA 6000001-6099999 Control Diagram

Description

Honda HRB535 - PXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP04102-ZG9-M10 Available to backorder	Control Assy	£448.68 £373.90
5	HP16561-ZE6-010 In stock	Governor Spring	£4.36 £3.63
6	HP16562-ZE6-000 In stock	Throttle Return Spring	£5.76 £4.80
7	HP16573-ZE6-010 In stock	Choke Rod	£3.62 £3.02
9	HP16576-891-000 Available to backorder	Cable Holder	£3.89 £3.24
10	HP16584-883-300 Available to backorder	Control Adjusting Spring	£4.80 £4.00
11	1271 In stock	Fuel Tap Assy	£3.68 £3.07
13	HP36120-ZE6-010 Available to backorder	Switch Control Spring	£2.63 £2.19
14	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
15	HP90015-ZE5-010 Available to backorder	Governor Arm Bolt	£3.35 £2.79
16	HP93500-040080A Available to backorder	Screw	£1.51 £1.26
17	HP93500-050160A Available to backorder	Screw Pan 5 X 16	£1.51 £1.26
18	HP93500-050200A Available to backorder	Screw Pan 5 X 20	£1.51 £1.26
19	HP93500-05025-0A Available to backorder	Screw	£1.51 £1.26
20	HP93892-05012-00 Available to backorder	Screw	£1.51 £1.26
21	HP94050-06000 In stock	Flange Nut 6mm	£3.37 £2.81
22	HP90006-ZG9-M00 Available to backorder	Shoulder Bolt	£1.57 £1.31
23	HP16956-ZM0-000 Available to backorder	Fuel Tap Bracket	£3.35 £2.79
