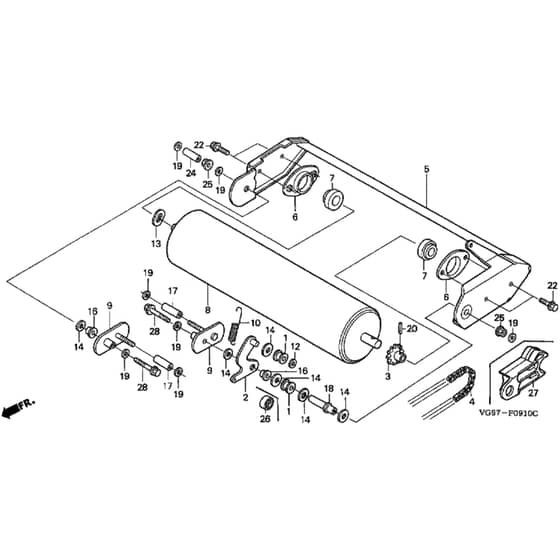

Honda HRB476C1 - QXEE - MZCD 1000001-9999999 Rear Roller Diagram

Description

Honda HRB476C1 - QXEE Rotary Mower Parts Diagram

	Part No.	Details
1	HPPB12166 In stock	Tension Roller	£12.64 £10.53
2	HP22520-VE0-M10 Available to backorder	Tension Arm Assy	£15.02 £12.52
3	HP23281-VE0-M10 In stock	Drive Sprocket	£87.65 £73.04
4	HP23853-VK8-A50 In stock	Roller Drive Chain	£72.50 £60.42
5	HP42650-VE0-M11 Available to backorder	Adjuster Arm Assy Rear R H	£75.96 £63.30
6	HP42761-VE0-M11 Available to backorder	Bearing Holder Assy	£13.02 £10.85
7	HP42775-VE0-M10 In stock	Roller Bearing Assy	£36.19 £30.16
8	HP42780-VE0-M10 In stock	Roller	£199.25 £166.04
9	HP42976-VE0-M10 Available to backorder	Adjusting Holder Assy	£45.73 £38.11
10	HP76122-VE0-M10 In stock	Tension Arm Spring	£8.70 £7.25
12	HP90407-VA9-F60 In stock	Special Washer 12mm	£1.27 £1.06
13	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
14	HP90459-107-000 In stock	Washer	£5.12 £4.27
16	HP91555-VA9-F60 In stock	Arm Collar	£6.54 £5.45
18	HP91556-VA9-F60 In stock	Roller Collar	£6.54 £5.45
19	HP94103-08000 In stock	Plain Washer 8mm	£0.56 £0.47
20	HP94305-50221 In stock	Spring Pin 5 X 22	£3.23 £2.69
22	HP95701-0601200 In stock	Bolt	£0.97 £0.81
24	HP91558-VE0-000 Available to backorder	Collar 12.7 X 42.5	£2.15 £1.79
25	HP94050-08000 In stock	Flange Nut 8mm	£3.37 £2.81
26	HP22466-VE0-M10 In stock	Tension Roller	£12.64 £10.53
27	HP23876-VE0-M10 In stock	Chain Guide	£13.26 £11.05
28	HP90101-VE0-M10 Available to backorder	Cover Bolt	£1.76 £1.47
