Honda HRB476C1 - PXEE - MZCD 1000001-9999999 Rear Wheel Diagram

Description

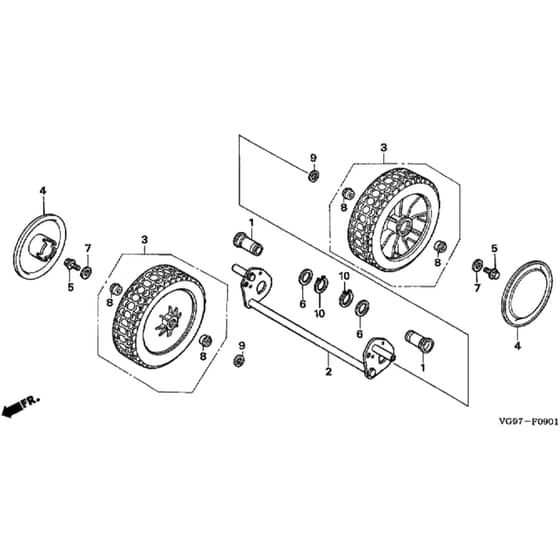

Honda HRB476C1 - PXEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP41418-VE0-800 Available to backorder	Drive Shaft Collar	£14.96 £12.47
2	HP42310-VE0-751 Available to backorder	Axle Shaft	£84.36 £70.30
3	HP44710-VE0-751ZB Available to backorder	Rear Wheel	£47.66 £39.72
4	HP44719-VE0-751ZA In stock	Hub Cap	£4.50 £3.75
5	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
6	HP90453-KA3-710 Available to backorder	Thrust Washer	£9.06 £7.55
7	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
8	HP91051-VE0-750 In stock	Bearing	£12.20 £10.17
9	HP91556-VE0-751 Available to backorder	Wheel Collar	£6.46 £5.38
10	HP94510-20000 Available to backorder	External Circlip 20mm	£1.72 £1.43
