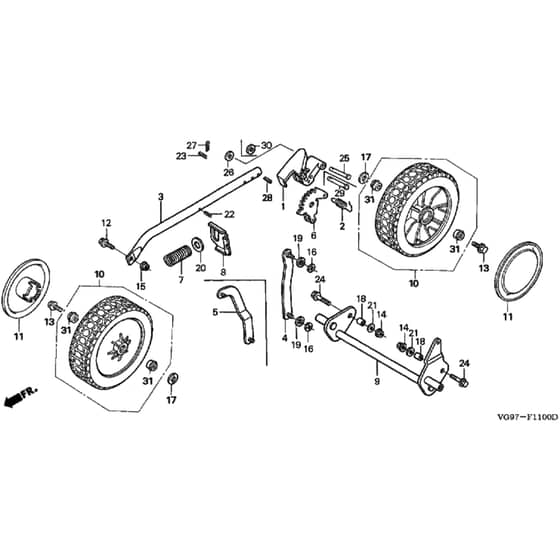

Honda HRB476C1 - PDEE - MZCD 1000001-9999999 Front Wheel Diagram

Description

Honda HRB476C1 - PDEE Rotary Mower Parts Diagram

	Part No.	Details
2	HP42962-VE0-000 Available to backorder	Return Spring	£3.79 £3.16
3	HP42963-VE0-000 Available to backorder	Adjuster Arm	£18.80 £15.67
5	HP42964-VE0-000 Available to backorder	Adjuster Arm	£21.00 £17.50
6	HP42991-VE0-000 Available to backorder	Height Panel	£24.20 £20.17
7	HP42992-VE0-000 Available to backorder	Balancer Spring	£29.93 £24.94
8	HP42993-VE0-000 Available to backorder	Seat Spring	£3.52 £2.93
9	HP44310-VE0-000 Available to backorder	Front Axle Shaft	£145.56 £121.30
10	HP44710-VE0-751ZB Available to backorder	Front Wheel	£47.66 £39.72
11	HP44719-VE0-751ZA In stock	Hub Cap	£4.50 £3.75
13	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
14	HP90115-659-003 In stock	Nut	£1.19 £0.99
15	HP90301-473-003 Available to backorder	Nut	£8.89 £7.41
16	HP90407-VA9-K40 In stock	Special Washer 8mm	£1.85 £1.54
17	HP90455-VA2-000 In stock	Wheel Washer	£3.08 £2.57
18	HP91905-VA9-000 Available to backorder	Adjusting Collar	£4.07 £3.39
19	HP94101-08000 Available to backorder	Plain Washer 8mm	£0.97 £0.81
20	HP94101-16000 Available to backorder	Washer	£1.08 £0.90
21	HP94103-08000 In stock	Plain Washer 8mm	£0.56 £0.47
22	HP94305-40282 Available to backorder	Spring Pin 4 X 28	£2.40 £2.00
23	HP94305-60302 Available to backorder	Spring Pin 6 X 30	£2.48 £2.07
24	HP95801-0805000 Available to backorder	Flange Bolt 8 X 50	£2.69 £2.24
31	HP91051-VE0-750 In stock	Bearing	£12.20 £10.17
