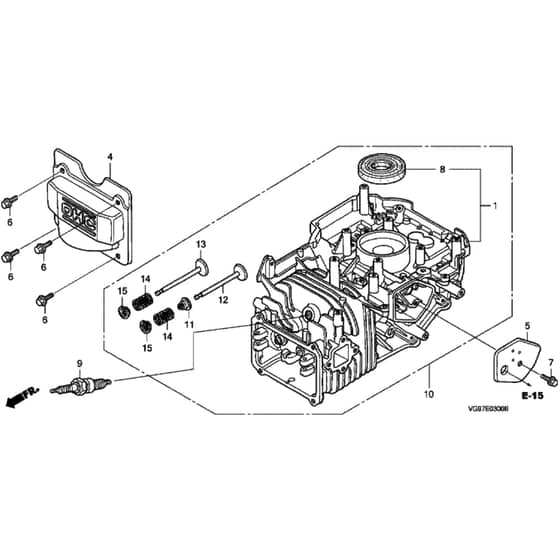

Honda HRB476C1 - PDE - MZCD 8100001-8123431 Cylinder Barrel Diagram

Name: Honda HRB476C1 - PDE - MZCD 8100001-8123431 Cylinder Barrel Diagram
SKU: hrb476c1_pde_mzcd_8100001_8123431_cylinder_barrel-group
Price: 2.24 GBP
Availability: InStock

Part No. hrb476c1_pde_mzcd_8100001_8123431_cylinder_barrel-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB476C1 - PDE - MZCD 8100001-8123431 Cylinder Barrel Diagram

Description

Honda HRB476C1 - PDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP12000-Z0L-840 Available to backorder	Cylinder Assy	£245.28 £204.40
4	HP12311-ZL8-D00 Available to backorder	Rocker Cover	£8.90 £7.42
5	HP12355-ZL8-000 Available to backorder	Breather Cover Assy	£10.72 £8.93
6	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£4.34 £3.62
7	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
8	HP91201-ZL8-003 Available to backorder	Oil Seal 25.4 X 62 X 6	£9.64 £8.03
9	2136 In stock	Spark Plug	£2.81 £2.34
11	HP12209-ZM0-003 Available to backorder	Valve Stem Seal	£8.57 £7.14
12	HP14711-ZL8-000 Available to backorder	Inlet Valve	£10.58 £8.82
13	HP14721-ZL8-000 Available to backorder	Exhaust Valve	£12.25 £10.21
14	HP14751-ZL8-000 Available to backorder	Valve Spring	£2.69 £2.24
15	HP14771-ZE1-000 Available to backorder	Exhaust Valve Spring Retainer	£9.19 £7.66
