Honda HRB476C1 - HXEE - MZCD 1000001-9999999 Handle Pipe Diagram

Name: Honda HRB476C1 - HXEE - MZCD 1000001-9999999 Handle Pipe Diagram
SKU: hrb476c1_hxee_mzcd_1000001_9999999_handle_pipe_hxee_pxee_qxee_sx
Price: 0.81 GBP
Availability: InStock

Part No. hrb476c1_hxee_mzcd_1000001_9999999_handle_pipe_hxee_pxee_qxee_sx

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB476C1 - HXEE - MZCD 1000001-9999999 Handle Pipe Diagram

Description

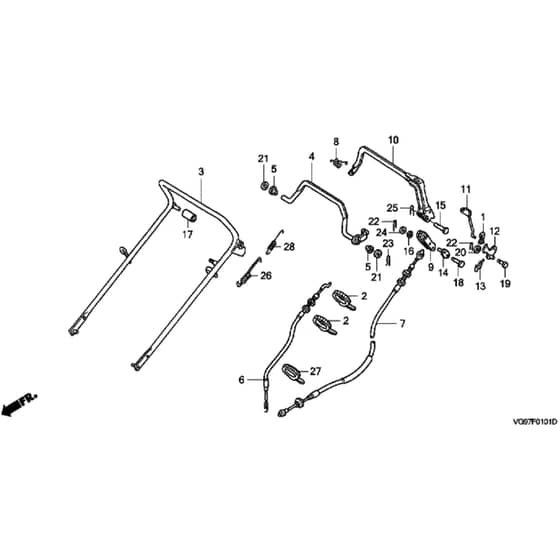

Honda HRB476C1 - HXEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP16956-892-000 Available to backorder	Rod Joint	£8.39 £6.99
2	HP32901-VE0-850 Available to backorder	Cable Tie	£6.20 £5.17
3	HP53110-VE0-L40ZA Available to backorder	Upper Handle	£302.28 £251.90
3	HP53110-VE0-L00ZA Available to backorder	Upper Handle	£186.00 £155.00
4	HP54410-VA9-H50 Available to backorder	Clutch Lever Assy	£78.12 £65.10
5	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.55 £3.79
7	HP54530-VE0-M01 In stock	Roto-Stop Cable	£29.83 £24.86
8	HP75118-VA3-J00 In stock	Stop Return Spring R H	£8.56 £7.13
9	HP75128-VE0-L00 Available to backorder	Cable Arm	£16.03 £13.36
10	HP75161-VE0-L01 Available to backorder	Roto-Stop Lever Assy	£69.96 £58.30
11	HP75165-VE0-L00 In stock	Ratchet Push Rod	£12.05 £10.04
13	HP75168-VA4-000 In stock	Pawl Spring	£6.90 £5.75
12	HP75166-VA3-J01 Available to backorder	Lock Lever	£7.14 £5.95
15	HP90106-VA4-800 Available to backorder	Clutch Lever Pin	£12.19 £10.16
17	HP90552-VA3-J00 Available to backorder	Collar 8 X 11 X 13.5	£7.00 £5.83
18	HP90754-VA9-P40 In stock	Cable Joint Pin	£3.56 £2.97
19	HP90753-VA3-J00 Available to backorder	Lever Hinge Lock Pin	£5.06 £4.22
20	HP90407-952-300 Available to backorder	Special Washer 6mm	£4.24 £3.53
21	HP94101-08000 Available to backorder	Plain Washer 8mm	£0.97 £0.81
22	HP94251-06000 In stock	Lock Pin 6mm	£1.22 £1.02
23	HP94251-08000 In stock	Lock Pin 8mm	£1.84 £1.53
26	HP54414-VA3-P00 Available to backorder	Clutch Lever Return Spring	£7.84 £6.53
