Honda HRB476C - SXE/A - MZCD 8500001-8510560 Rear Wheel Diagram

Description

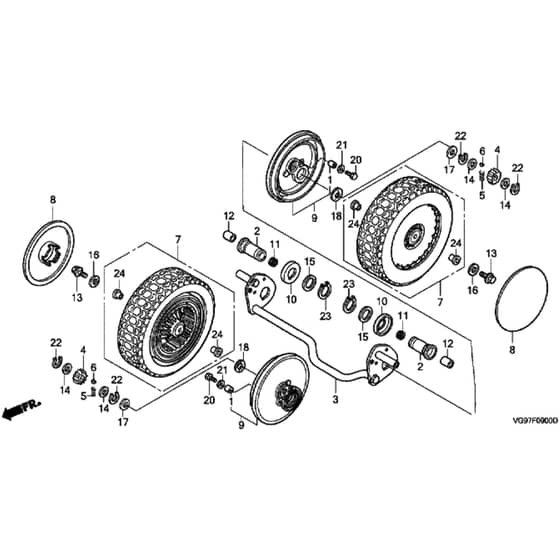

Honda HRB476C - SXE/A Rotary Mower Parts Diagram

	Part No.	Details
1	HP16598-ZG1-750 Available to backorder	Control Collar	£3.85 £3.21
2	HP41418-VE0-800 Available to backorder	Drive Shaft Collar	£14.96 £12.47
3	HP42310-VE0-800 Available to backorder	Axle Shaft	£90.84 £75.70
4	HP42661-VH3-850 In stock	Pinion Gear	£7.58 £6.32
5	HP42668-VE2-800 In stock	Pawl Spring	£1.21 £1.01
6	HP42672-VE2-800 In stock	Ratchet Key	£4.33 £3.61
7	HP42710-VE0-800ZA Available to backorder	Rear Wheel	£47.66 £39.72
8	HP42719-VE0-851ZA Available to backorder	Hub Cap	£3.60 £3.00
9	HP42865-VE0-800ZA Available to backorder	Wheel Cover	£19.02 £15.85
10	HP42868-VA9-K40 Available to backorder	Wheel Cap	£1.57 £1.31
11	HP42944-VA2-702 Available to backorder	Dust Seal 12mm	£7.68 £6.40
12	HP44327-VH3-Y10 Available to backorder	Drive Shaft Bush	£13.09 £10.91
13	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
14	HP90452-166-600 In stock	Washer	£0.40 £0.33
15	HP90453-KA3-710 Available to backorder	Thrust Washer	£9.06 £7.55
16	HP90506-VA9-K41 Available to backorder	Wheel Washer	£4.24 £3.53
17	HP90459-360-000 Available to backorder	Thrust Washer	£3.60 £3.00
18	HP90505-VA9-K40 In stock	Washer 13Mm	£2.20 £1.83
20	HP92101-050120A Available to backorder	Bolt	£1.04 £0.87
21	HP94101-05800 Available to backorder	Plain Washer 5mm	£0.97 £0.81
22	HP94510-12000 In stock	External Circlip 12mm	£1.19 £0.99
23	HP94510-20000 Available to backorder	External Circlip 20mm	£1.72 £1.43
24	HP42716-VE0-800 In stock	Wheel Bush	£3.97 £3.31
