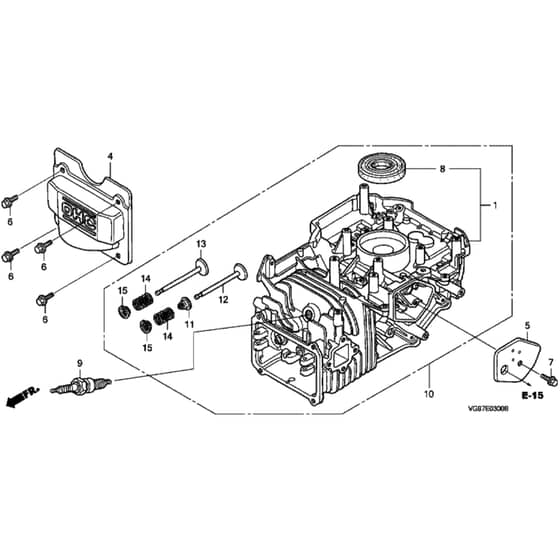

Honda HRB476C - SXE/A - MZCD 8500001-8510560 Cylinder Barrel Diagram

Name: Honda HRB476C - SXE/A - MZCD 8500001-8510560 Cylinder Barrel Diagram
SKU: hrb476c_sxe_a_mzcd_8500001_8510560_cylinder_barrel-group
Price: 1.75 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB476C - SXE/A - MZCD 8500001-8510560 Cylinder Barrel Diagram

Description

Honda HRB476C - SXE/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP12000-Z0L-840 Available to backorder	Cylinder Assy	£239.64 £199.70
4	HP12311-ZL8-D00 Available to backorder	Rocker Cover	£8.82 £7.35
5	HP12355-ZL8-000 Available to backorder	Breather Cover Assy	£10.61 £8.84
6	HP90013-883-000 Available to backorder	Flange Bolt 6 X 12	£5.42 £4.52
7	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.73 £3.11
8	HP91201-ZL8-003 Available to backorder	Oil Seal 25.4 X 62 X 6	£9.54 £7.95
9	2136 In stock	Spark Plug	£2.10 £1.75
11	HP12209-ZM0-003 Available to backorder	Valve Stem Seal	£8.50 £7.08
12	HP14711-ZL8-000 Available to backorder	Inlet Valve	£10.49 £8.74
13	HP14721-ZL8-000 Available to backorder	Exhaust Valve	£12.14 £10.12
14	HP14751-ZL8-000 Available to backorder	Valve Spring	£2.65 £2.21
15	HP14771-ZE1-000 Available to backorder	Exhaust Valve Spring Retainer	£9.11 £7.59
