Honda HRB476C - QXE/A - MZCD 8500001-8510560 Carburettor Diagram

Name: Honda HRB476C - QXE/A - MZCD 8500001-8510560 Carburettor Diagram
SKU: hrb476c_qxe_a_mzcd_8500001_8510560_carburettor-group
Price: 1.93 GBP
Availability: InStock

Part No. hrb476c_qxe_a_mzcd_8500001_8510560_carburettor-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB476C - QXE/A - MZCD 8500001-8510560 Carburettor Diagram

Description

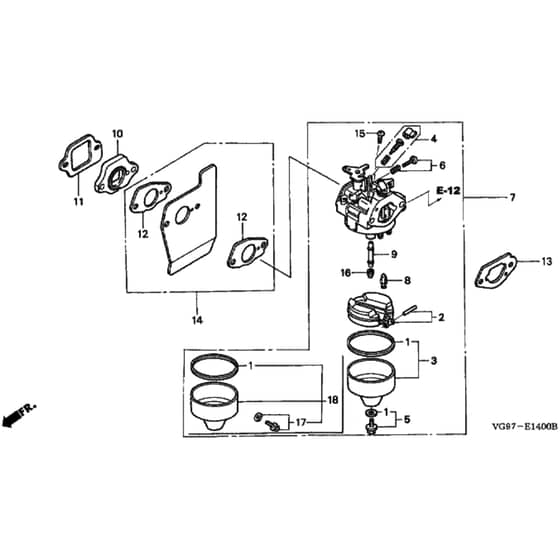

Honda HRB476C - QXE/A Rotary Mower Parts Diagram

	Part No.	Details
1	HP16010-883-015 In stock	Gasket Set	£13.36 £11.13
2	HP16013-ZL1-003 Available to backorder	Float Set	£36.44 £30.37
3	HP16015-892-505 Available to backorder	Float Bowl Set	£55.67 £46.39
4	HP16016-892-005 Available to backorder	Screw Set	£12.04 £10.03
4	HP16016-ZG0-W00 Available to backorder	Screw Set	£13.69 £11.41
5	HP16028-ZK7-S91 In stock	Screw Set	£14.34 £11.95
6	HP16029-ZG0-901 Available to backorder	Throttle Stop Screw Set	£14.30 £11.92
7	HP16100-Z0L-023 In stock	Carburettor Assy	£106.64 £88.87
8	HP16155-ZM0-003 Available to backorder	Float Valve	£37.14 £30.95
9	HP16166-ZM0-003 Available to backorder	Main Nozzle	£38.39 £31.99
10	HP16211-ZL8-000 In stock	Carburettor Insulator	£5.21 £4.34
11	HP16212-ZL8-000 In stock	Insulator Gasket	£3.07 £2.56
12	HP16221-883-800 In stock	Carburettor Gasket	£2.46 £2.05
13	HP16228-ZL8-000 In stock	Carburettor Gasket	£3.14 £2.62
14	HP19650-ZM0-000 In stock	Air Guide Assy	£12.07 £10.06
15	HP93500-050-060H Available to backorder	Pan Screw	£2.32 £1.93
16	HP99101-1240620 Available to backorder	Main Jet	£12.34 £10.28
16	HP99101-1240650 Available to backorder	Jet	£12.34 £10.28
16	HP99101-1240600 Available to backorder	Main Jet	£12.34 £10.28
17	HP16024-ZE1-811 Available to backorder	Drain Screw Set	£13.69 £11.41
18	HP16015-887-782 Available to backorder	Float Bowl Set	£45.56 £37.97
