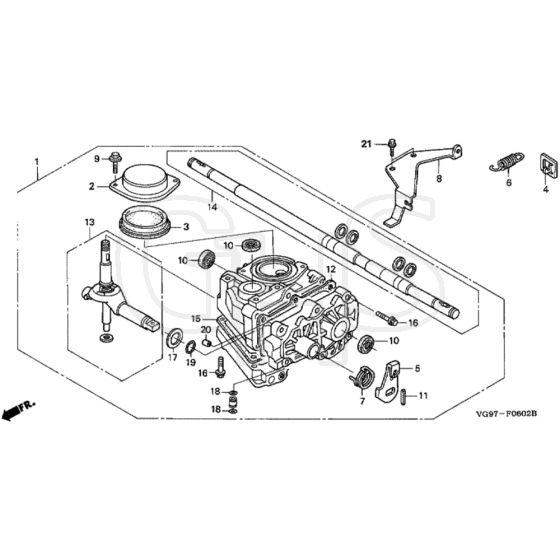

Honda HRB476C - HXE/A Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP20001-VE5-A32 Available to backorder	Transmission Assy	£462.32 £385.27
2	HP21230-VE5-A00 Available to backorder	Oil Cap Assy	£24.31 £20.26
3	HP21235-VE5-303 Available to backorder	Oil Cap O Ring	£9.32 £7.77
4	HP21557-VE0-800 Available to backorder	Tension Spring Plate	£4.34 £3.62
5	HP22533-VE5-A00 Available to backorder	Control Arm	£16.30 £13.58
6	HP22534-VA9-K41 Available to backorder	Tension Spring	£7.16 £5.97
7	HP24134-VE5-A00 Available to backorder	Control Arm Return Spring	£3.22 £2.68
8	HP51125-VE0-J50 Available to backorder	Wire Holder	£19.02 £15.85
9	HP90003-892-000 Available to backorder	Flange Bolt 5 X 12	£1.86 £1.55
10	HP91204-KE8-003 Available to backorder	Oil Seal	£6.84 £5.70
11	HP94305-40252 Available to backorder	Spring Pin 4 X 25	£2.52 £2.10
12	HP21115-VE5-000 Available to backorder	Gasket	£9.08 £7.57
13	HP25010-VE5-A00 Available to backorder	Pump Set	£182.76 £152.30
14	HP25013-VE5-A30 Available to backorder	Shaft Set	£193.80 £161.50
15	HP25513-VE5-000 Available to backorder	Gasket	£9.78 £8.15
16	HP90123-VA4-800 Available to backorder	Flange Bolt	£2.80 £2.33
17	HP90453-235-000 Available to backorder	Thrust Washer	£4.46 £3.72
18	HP91351-VE5-000 Available to backorder	O-Ring	£2.36 £1.97
19	HP91352-VE5-000 Available to backorder	O-Ring	£3.08 £2.57
20	HP94301-08100 Available to backorder	Dowel Pin 8 X 10	£2.38 £1.98
21	HP90029-888-000 Available to backorder	Flange Bolt 6 X 16	£4.06 £3.38
