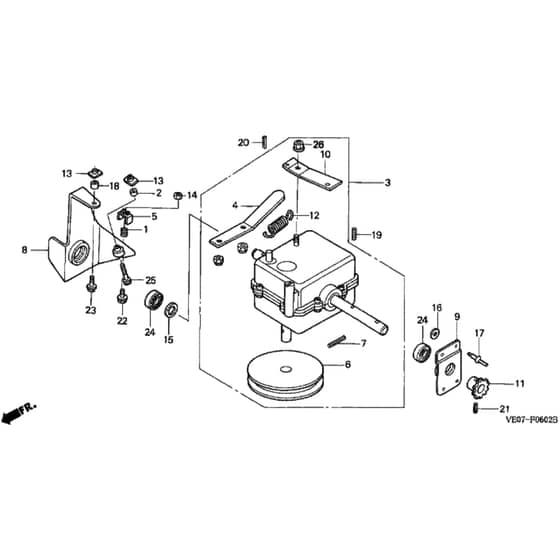

Honda HRB475K3 - QME - MZAZ 8300001-9999999 Transmission Diagram

Description

Honda HRB475K3 - QME Rotary Mower Parts Diagram

	Part No.	Details
1	HP17858-VA4-000 In stock	Throttle Lever Spring	£4.16 £3.47
2	HP19612-896-750 Available to backorder	Fan Cover Collar	£2.21 £1.84
3	HP20001-VE0-M12 Available to backorder	Transmission Assy	£230.40 £192.00
4	HP21284-VE0-M11 Available to backorder	Transmission Stopper	£17.60 £14.67
5	HP21557-VA9-F60 Available to backorder	Spring Holder	£10.80 £9.00
6	HP22421-VE1-T00 Available to backorder	Pulley	£41.09 £34.24
7	HP22428-VA9-F60 Available to backorder	Spring Pin	£1.37 £1.14
8	HP22511-VE0-M10 Available to backorder	Transmission Guide	£42.80 £35.67
9	HP22513-VE0-M10 Available to backorder	Guide	£43.57 £36.31
10	HP22811-VE0-M12 Available to backorder	Clutch Arm	£27.06 £22.55
11	HP23121-VE0-M10 In stock	Drive Sprocket	£62.57 £52.14
12	HP23439-VE0-851 In stock	Clutch Arm Return Spring	£4.98 £4.15
13	HP61304-958-003 In stock	Nut	£8.28 £6.90
14	HP90308-SA0-981 Available to backorder	Lock Nut	£5.32 £4.43
15	HP90459-107-000 In stock	Washer	£5.12 £4.27
16	HP90483-178-000 Available to backorder	Washer	£3.38 £2.82
17	HP90852-VA9-K41 Available to backorder	Rivet 4.8 X 17.2	£1.61 £1.34
18	HP91554-VE0-C50 Available to backorder	Collar	£2.44 £2.03
19	HP94305-30182 In stock	Spring Pin 3 X 18	£1.75 £1.46
20	HP94305-40182 Available to backorder	Spring Pin 4 X 18	£3.02 £2.52
21	HP94305-50221 In stock	Spring Pin 5 X 22	£3.23 £2.69
22	HP95701-060-1800 Available to backorder	Flange Bolt	£0.94 £0.78
23	HP95701-060-2000 Available to backorder	Flange Bolt	£1.32 £1.10
24	HP96150-6001010 Available to backorder	Bearing	£5.69 £4.74
25	HP96600-0604000 Available to backorder	Bolt	£0.48 £0.40
26	HP90301-VE0-L01 Available to backorder	Lock Nut 5Mm	£5.68 £4.73
