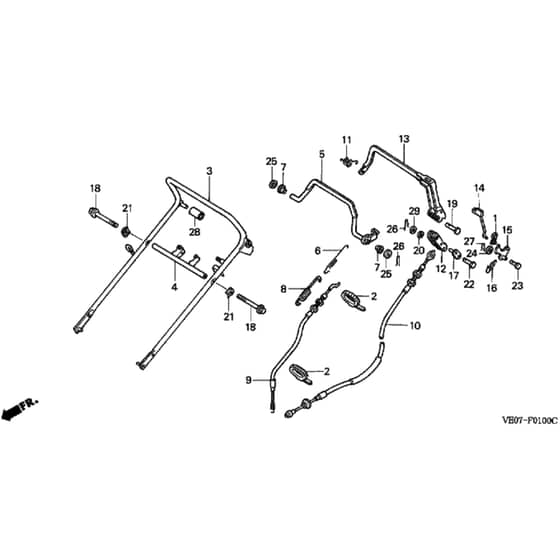

Honda HRB475K3 - HME - MZAZ 8300001-9999999 Handle Pipe Diagram

Name: Honda HRB475K3 - HME - MZAZ 8300001-9999999 Handle Pipe Diagram
SKU: hrb475k3_hme_mzaz_8300001_9999999_handle_pipe-group
Price: 0.8 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475K3 - HME - MZAZ 8300001-9999999 Handle Pipe Diagram

Description

Honda HRB475K3 - HME Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16956-892-000 Available to backorder	Rod Joint	£8.52 £7.10
2	HP32901-VE0-850 Available to backorder	Cable Tie	£6.30 £5.25
4	HP53168-VE0-L50ZA Available to backorder	Handle Connector	£15.38 £12.82
5	HP54410-VA9-H50 Available to backorder	Clutch Lever Assy	£78.72 £65.60
6	HP54411-VA3-P00 In stock	Clutch Spring	£8.64 £7.20
7	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.62 £3.85
8	HP54414-VA3-P00 In stock	Clutch Lever Return Spring	£6.52 £5.43
10	HP54530-VE0-M01 In stock	Roto-Stop Cable	£27.84 £23.20
11	HP75118-VA3-J00 In stock	Stop Return Spring R H	£7.82 £6.52
12	HP75128-VE0-L00 Available to backorder	Cable Arm	£15.50 £12.92
13	HP75161-VE0-L01 Available to backorder	Roto-Stop Lever Assy	£72.36 £60.30
14	HP75165-VE0-L00 In stock	Ratchet Push Rod	£11.04 £9.20
15	HP75166-VA3-J01 Available to backorder	Lock Lever	£23.56 £19.63
16	HP75168-VA4-000 In stock	Pawl Spring	£6.48 £5.40
18	HP90101-VE0-000 Available to backorder	Handle Bolt	£2.88 £2.40
19	HP90106-VA4-800 Available to backorder	Clutch Lever Pin	£11.96 £9.97
21	HP90501-898-000 Available to backorder	Frame Joint Washer	£4.20 £3.50
22	HP90754-VA9-P40 In stock	Cable Joint Pin	£3.32 £2.77
23	HP90753-VA3-J00 Available to backorder	Lever Hinge Lock Pin	£4.80 £4.00
24	HP90407-952-300 Available to backorder	Special Washer 6mm	£4.10 £3.42
25	HP94101-08000 Available to backorder	Plain Washer 8mm	£0.96 £0.80
26	HP94251-06000 In stock	Lock Pin 6mm	£1.14 £0.95
27	HP94251-08000 In stock	Lock Pin 8mm	£1.86 £1.55
28	HP90552-VA3-J00 Available to backorder	Collar 8 X 11 X 13.5	£6.76 £5.63
