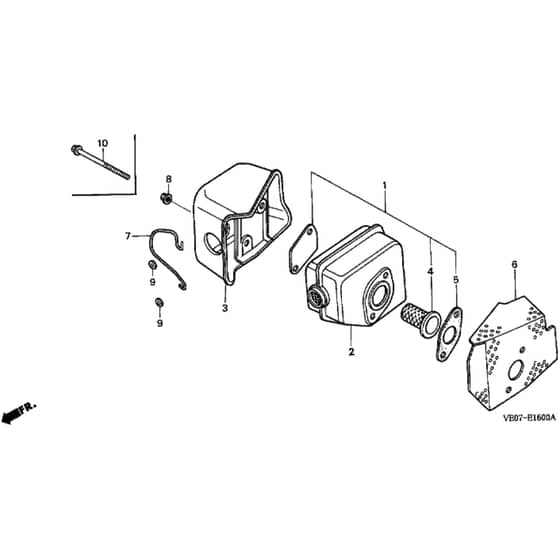

Honda HRB475K2 - SDE - MZAZ 8200001-8299999 Muffler Diagram

Name: Honda HRB475K2 - SDE - MZAZ 8200001-8299999 Muffler Diagram
SKU: hrb475k2_sde_mzaz_8200001_8299999_muffler-group
Price: 1 GBP
Availability: InStock

Part No. hrb475k2_sde_mzaz_8200001_8299999_muffler-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475K2 - SDE - MZAZ 8200001-8299999 Muffler Diagram

Description

Honda HRB475K2 - SDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP06180-ZE6-820 Available to backorder	Spark Arrester	£20.04 £16.70
2	8981 In stock	Exhaust	£7.80 £6.50
3	HP18320-ZG9-M01 Available to backorder	Exhaust Protector	£41.69 £34.74
4	HP18355-888-810 Available to backorder	Spark Arrester	£19.12 £15.93
5	HP18381-ZE6-820 Available to backorder	Exhaust Gasket	£4.86 £4.05
6	HP18381-ZG9-M00 In stock	Exhaust Gasket	£10.84 £9.03
7	HP18435-ZE7-W40 Available to backorder	Exhaust Guard	£29.74 £24.78
8	HP90308-SA0-981 Available to backorder	Lock Nut	£5.32 £4.43
9	HP94101-06000 Available to backorder	Plain Washer 6mm	£1.20 £1.00
10	HP95801-0608500 Available to backorder	Flange Bolt 6 X 85	£2.26 £1.88
