Honda HRB475K2 - QME - MZAZ 8200001-8299999 Wire Harness/Battery Diagram

Description

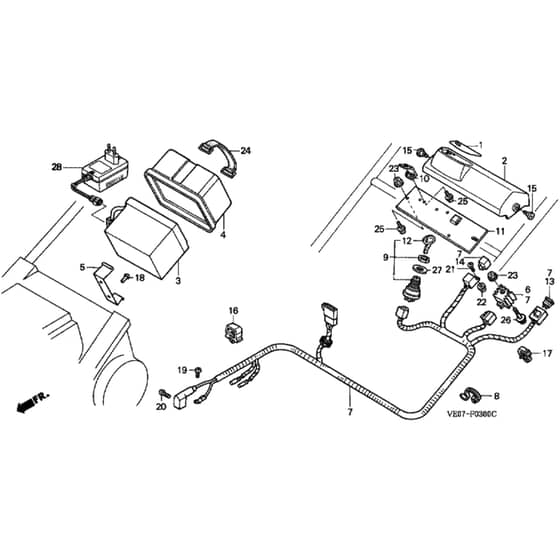

Honda HRB475K2 - QME Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP31305-VF0-850 Available to backorder	Switch Plate	£22.98 £19.15
2	HP31311-VA3-P00 Available to backorder	Control Panel	£110.64 £92.20
5	HP31552-VE0-K50 Available to backorder	Stay	£16.20 £13.50
6	HP31750-735-013 Available to backorder	Regulator Rectifier	£55.14 £45.95
7	HP32100-VE0-K50 Available to backorder	Wiring Harness	£300.60 £250.50
8	HP32901-VE0-850 Available to backorder	Cable Tie	£6.30 £5.25
9	HP35100-772-003 Available to backorder	Ignition Switch Assy	£68.04 £56.70
10	HP35102-VE0-L50 Available to backorder	Switch Plate	£16.44 £13.70
12	HP35110-772-013 In stock	Ignition Key	£9.86 £8.22
13	HP38206-VA3-P01 Available to backorder	Fuse	£2.27 £1.89
14	HP38350-772-003 Available to backorder	Control Relay Assy 40A	£47.78 £39.82
15	HP90380-MA6-010 Available to backorder	Screw	£4.74 £3.95
16	HP90650-SB2-003 Available to backorder	Clip	£6.41 £5.34
17	HP90684-ZA0-601 Available to backorder	Harness Clip	£3.70 £3.08
18	HP90851-VA9-K41 Available to backorder	Rivet 4.8 X 14	£4.94 £4.12
19	HP93500-04006-0A Available to backorder	Screw	£1.50 £1.25
20	HP93500-050080A Available to backorder	Screw	£1.50 £1.25
21	HP93500-05010-0A Available to backorder	Screw	£1.50 £1.25
22	HP94050-05000 Available to backorder	Flange Nut 5mm	£3.22 £2.68
23	HP94050-06000 In stock	Flange Nut 6mm	£3.22 £2.68
24	HP95012-13001 Available to backorder	Battery Band	£9.60 £8.00
25	HP95701-0601200 In stock	Bolt	£0.90 £0.75
26	HP95701-0603200 Available to backorder	Bolt	£1.45 £1.21
