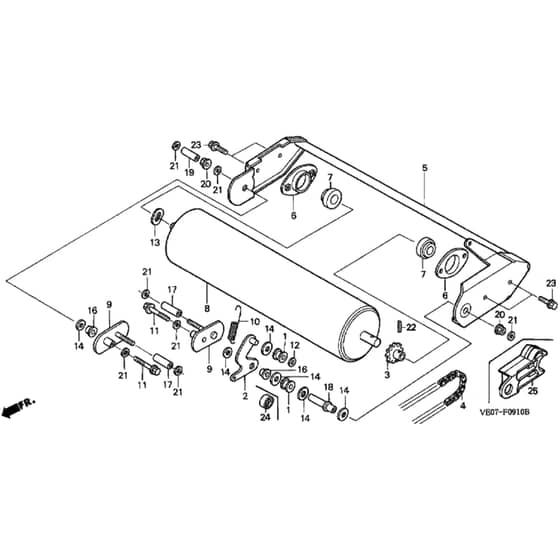

Honda HRB475K2 - QME - MZAZ 8200001-8299999 Roller Diagram

Name: Honda HRB475K2 - QME - MZAZ 8200001-8299999 Roller Diagram
SKU: hrb475k2_qme_mzaz_8200001_8299999_roller_qme_-group
Price: 0.39 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475K2 - QME - MZAZ 8200001-8299999 Roller Diagram

Description

Honda HRB475K2 - QME Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HPPB12166 Available to backorder	Tension Roller	£11.78 £9.82
2	HP22520-VE0-M10 Available to backorder	Tension Arm Assy	£14.28 £11.90
4	HP23853-VE0-M11 Available to backorder	Roller Chain	£66.96 £55.80
5	HP42650-VE0-M11 Available to backorder	Adjuster Arm Assy Rear R H	£76.56 £63.80
6	HP42761-VE0-M11 In stock	Bearing Holder Assy	£12.14 £10.12
7	HP42775-VE0-M10 In stock	Roller Bearing Assy	£34.26 £28.55
8	HP42780-VE0-M10 In stock	Roller	£181.32 £151.10
9	HP42976-VE0-M10 Available to backorder	Adjusting Holder Assy	£46.42 £38.68
10	HP76122-VE0-M10 In stock	Tension Arm Spring	£8.12 £6.77
11	HP90101-VE0-M10 Available to backorder	Cover Bolt	£1.86 £1.55
12	HP90407-VA9-F60 In stock	Special Washer 12mm	£1.16 £0.97
13	HP90455-VA2-000 Available to backorder	Wheel Washer	£2.88 £2.40
14	HP90459-107-000 In stock	Washer	£4.78 £3.98
16	HP91555-VA9-F60 In stock	Arm Collar	£6.00 £5.00
18	HP91556-VA9-F60 In stock	Roller Collar	£6.00 £5.00
19	HP91558-VE0-000 Available to backorder	Collar 12.7 X 42.5	£2.18 £1.82
20	HP94050-08000 In stock	Flange Nut 8Mm	£3.08 £2.57
21	HP94103-08000 In stock	Plain Washer 8mm	£0.47 £0.39
22	HP94305-50221 In stock	Spring Pin 5 X 22	£3.00 £2.50
23	HP95701-0601200 In stock	Bolt	£0.90 £0.75
