Honda HRB475K2 - PDE - MZAZ 8200001-8299999 Recoil Starter Diagram

Name: Honda HRB475K2 - PDE - MZAZ 8200001-8299999 Recoil Starter Diagram
SKU: hrb475k2_pde_mzaz_8200001_8299999_recoil_starter-group
Price: 2.2 GBP
Availability: InStock

Part No. hrb475k2_pde_mzaz_8200001_8299999_recoil_starter-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

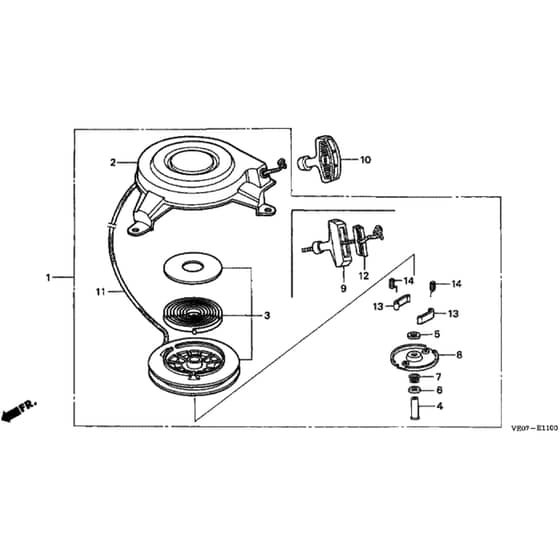

Honda HRB475K2 - PDE - MZAZ 8200001-8299999 Recoil Starter Diagram

Description

Honda HRB475K2 - PDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP28400-ZG9-803 Available to backorder	Starter Recoil Assy	£92.52 £77.10
3	HP28415-ZG9-802 Available to backorder	Pulley & Spring Assy	£36.94 £30.78
4	HP28419-ZG9-802 Available to backorder	Centre Pin	£7.22 £6.02
5	HP28431-ZG9-802 Available to backorder	Friction Plate	£3.65 £3.04
6	HP28432-ZG9-802 Available to backorder	Friction Plate	£3.29 £2.74
7	HP28441-ZG9-802 Available to backorder	Friction Spring	£2.64 £2.20
8	HP28444-ZG9-802 Available to backorder	Retainer Spring	£5.74 £4.78
9	HP28461-ZE6-T02 Available to backorder	Recoil Handle	£13.68 £11.40
11	HP28462-ZG9-802 Available to backorder	Recoil Starter Rope	£11.82 £9.85
12	HP28463-ZE6-T02 Available to backorder	Handle	£10.55 £8.79
13	HP28485-ZE6-T02 Available to backorder	Dog	£6.36 £5.30
14	HP28486-ZE6-T02 Available to backorder	Dog Spring	£3.78 £3.15
