Honda HRB475K2 - HME - MZAZ 8200001-8299999 Starter Motor Diagram

Part No. hrb475k2_hme_mzaz_8200001_8299999_starter_motor_hme_qme_sme_-gro

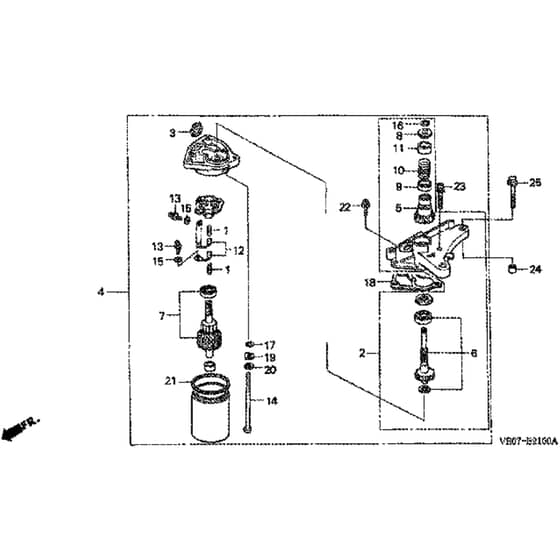

Honda HRB475K2 - HME - MZAZ 8200001-8299999 Starter Motor Diagram
Honda HRB475K2 - HME - MZAZ 8200001-8299999 Starter Motor Diagram

Description

Honda HRB475K2 - HME Rotary Mower Parts Diagram

Ref. Img. Part No. Details
  1 Brush Spring
Brush Spring
HP31204-187-701
Available to backorder
Brush Spring
£6.91 £5.76

  2 Gear Cover
Gear Cover
HP31205-ZG9-003
Available to backorder
Gear Cover
£188.16 £156.80

  3 Grommet
Grommet
HP31207-187-701
Available to backorder
Grommet
£4.82 £4.02

  4 Starter Motor
Starter Motor
HP31210-ZG9-013
Available to backorder
Starter Motor
£314.04 £261.70

  5 Pinion Gear
Pinion Gear
HP31214-ZE6-013
Available to backorder
Pinion Gear
£93.96 £78.30

  6 Gear Shaft Set
Gear Shaft Set
HP31215-ZG9-003
Available to backorder
Gear Shaft Set
£175.32 £146.10

  7 Rotor Assy
Rotor Assy
HP31217-ZG9-013
Available to backorder
Rotor Assy
£150.84 £125.70

  8 Stopper
Stopper
HP31221-ZE6-003
Available to backorder
Stopper
£13.94 £11.62

  9 Stopper
Stopper
HP31222-ZE6-003
Available to backorder
Stopper
£11.15 £9.29

  10 Return Spring
Return Spring
HP31223-ZE6-013
Available to backorder
Return Spring
£7.43 £6.19

  11 Spring Cover
Spring Cover
HP31224-ZE6-003
Available to backorder
Spring Cover
£13.45 £11.21

  12 Brush Set
Brush Set
HP31226-ZE6-003
Available to backorder
Brush Set
£21.26 £17.72

  13 Screw
Screw
HP90010-187-701
Available to backorder
Screw
£4.12 £3.43

  14 Bolt
Bolt
HP90012-ZE6-003
Available to backorder
Bolt
£2.06 £1.72

  15 Washer
Washer
HP90501-187-701
Available to backorder
Washer
£1.34 £1.12

  16 Circlip 7.1Mm
Circlip 7.1Mm
HP90601-ZE6-003
Available to backorder
Circlip 7.1Mm
£1.57 £1.31

  17 O-Ring
O-Ring
HP91301-ZE6-003
Available to backorder
O-Ring
£1.08 £0.90

  18 Gasket
Gasket
HP91401-ZE6-013
Available to backorder
Gasket
£2.44 £2.03

  19 Special Washer
Special Washer
HP91402-ZE6-003
Available to backorder
Special Washer
£0.72 £0.60

  20 Spring Washer
Spring Washer
HP91403-ZE6-003
Available to backorder
Spring Washer
£0.72 £0.60

  21 Packing
Packing
HP91601-ZE6-003
Available to backorder
Packing
£3.28 £2.73

  22 Screw
Screw
HP93892-05016-08
Available to backorder
Screw
£1.51 £1.26

  23 Screw
Screw
HP93892-05032-08
Available to backorder
Screw
£1.51 £1.26

  24 Dowel Pin 8 X 14
Dowel Pin 8 X 14
HP94301-08140
Available to backorder
Dowel Pin 8 X 14
£3.06 £2.55

  25 Bolt
Bolt
HP95701-0603200
Available to backorder
Bolt
£1.46 £1.22


Description

Honda HRB475K2 - HME Rotary Mower Parts Diagram
