Honda HRB475K1 - SXG - MZAZ 8100001-8199999 Transmission (SDE, SME, SXE) Diagram

Description

Honda HRB475K1 - SXG Rotary Mower Parts Diagram

	Part No.	Details
1	HP20001-VE0-851 Available to backorder	Transmission Assy	£196.62 £163.85
2	HP21557-VE0-800 Available to backorder	Tension Spring Plate	£4.34 £3.62

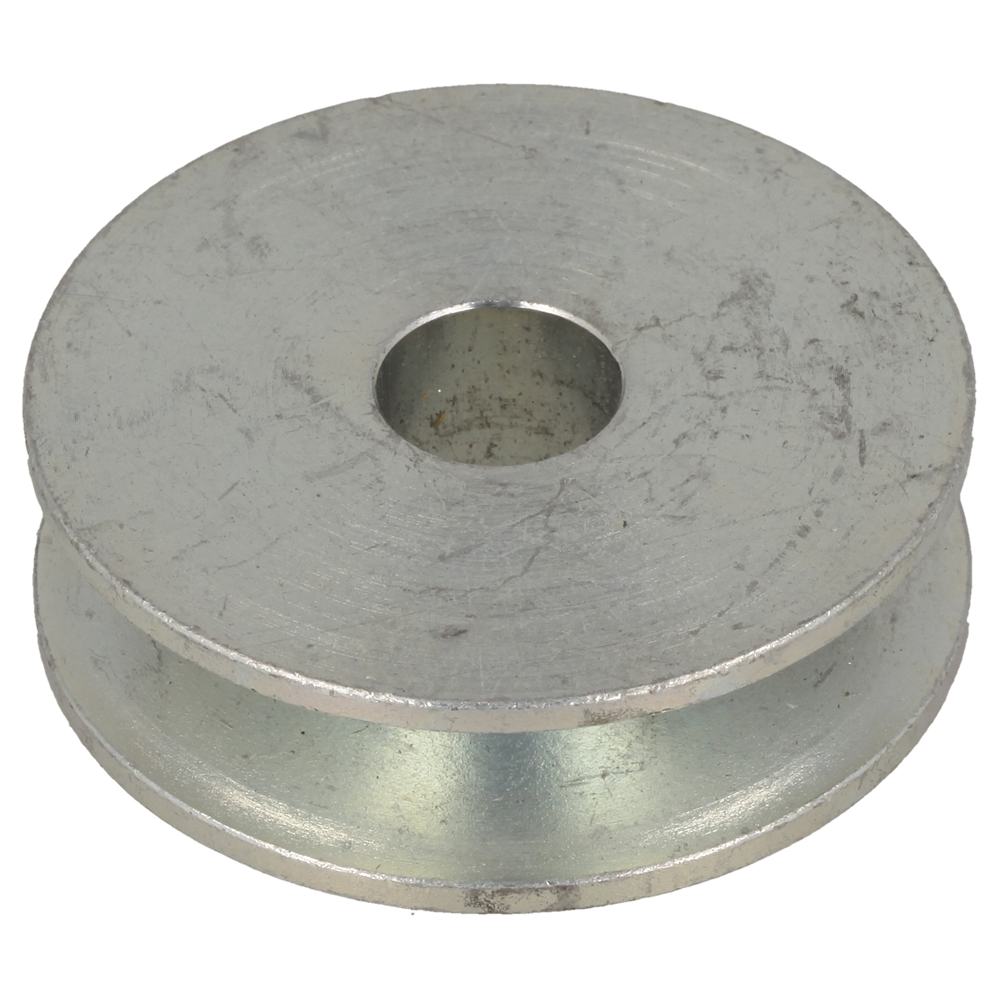

3	HP22420-VE0-851 Available to backorder	Pulley	£30.85 £25.71
4	HP22428-VE0-851 Available to backorder	Spring Pin	£2.38 £1.98
5	HP22534-VA9-K41 Available to backorder	Tension Spring	£7.16 £5.97
6	HP23436-VE0-851 Available to backorder	Clutch Arm	£16.87 £14.06
7	HP23439-VE0-851 Available to backorder	Clutch Arm Return Spring	£4.56 £3.80
