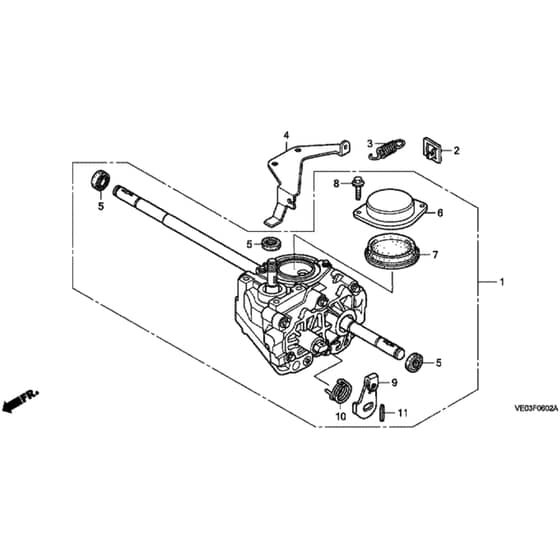

Honda HRB475K1 - SXG - MZAZ 8100001-8199999 Transmission (HXE) Diagram

Description

Honda HRB475K1 - SXG Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP20001-VE5-A32 Available to backorder	Transmission Assy	£462.32 £385.27
2	HP21557-VE0-800 Available to backorder	Tension Spring Plate	£4.34 £3.62
3	HP22534-VA9-K41 Available to backorder	Tension Spring	£7.16 £5.97
4	HP51125-VE0-J50 Available to backorder	Wire Holder	£19.02 £15.85
5	HP91204-KE8-003 Available to backorder	Oil Seal	£6.84 £5.70
6	HP21230-VE5-A00 Available to backorder	Oil Cap Assy	£24.31 £20.26
7	HP21235-VE5-303 Available to backorder	Oil Cap O Ring	£9.32 £7.77
8	HP90003-892-000 Available to backorder	Flange Bolt 5X12	£1.86 £1.55
9	HP22533-VE5-A00 Available to backorder	Control Arm	£16.30 £13.58
10	HP24134-VE5-A00 Available to backorder	Control Arm Return Spring	£3.22 £2.68
11	HP94305-40252 Available to backorder	Spring Pin 4 X 25	£2.52 £2.10
