Honda HRB475K1 - SXE - MZAZ 8100001-8199999 Gear Case Diagram

Name: Honda HRB475K1 - SXE - MZAZ 8100001-8199999 Gear Case Diagram
SKU: hrb475k1_sxe_mzaz_8100001_8199999_gear_case_se_sg_sxg_sxe_-group
Price: 0.81 GBP
Availability: InStock

Part No. hrb475k1_sxe_mzaz_8100001_8199999_gear_case_se_sg_sxg_sxe_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

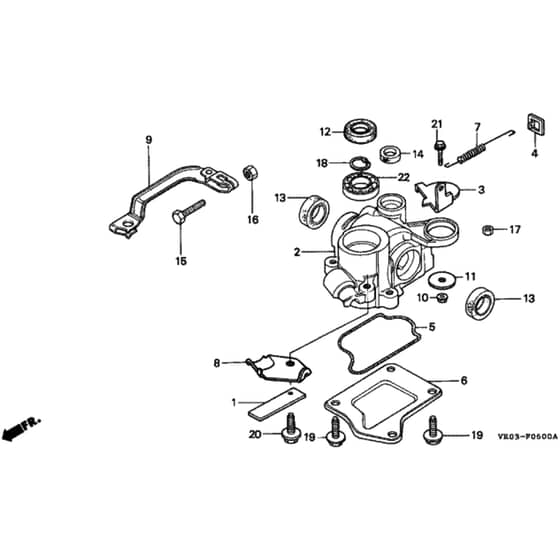

Honda HRB475K1 - SXE - MZAZ 8100001-8199999 Gear Case Diagram

Description

Honda HRB475K1 - SXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP21284-VE0-830 Available to backorder	Stopper	£2.44 £2.03
2	HP21511-VA9-H40 In stock	Upper Gear Case	Was £82.56 £68.80 Special Price £54.10 £45.08
3	HP21556-VE0-800 Available to backorder	Hook Tension Spring	£3.10 £2.58
4	HP21557-VE0-800 Available to backorder	Tension Spring Plate	£4.57 £3.81
5	HP21581-952-770 Available to backorder	O Ring	£4.74 £3.95
6	HP21611-952-770 Available to backorder	Cover	£10.46 £8.72
7	HP22534-VA9-K41 Available to backorder	Tension Spring	£7.40 £6.17
8	HP22535-VA9-K40 Available to backorder	Holder	£10.39 £8.66
10	HP90301-473-003 Available to backorder	Nut	£8.89 £7.41
12	HP91201-GS3-000 Available to backorder	Oil Seal	£10.49 £8.74
13	HP91201-965-000 Available to backorder	Oil Seal	£6.52 £5.43
14	HP91201-ZE9-003 Available to backorder	Oil Seal 8 X 14 X 5	£4.33 £3.61
15	HP92101-060200A Available to backorder	Bolt	£1.14 £0.95
16	HP94001-062000S Available to backorder	Hex Nut 6mm	£3.24 £2.70
17	HP94030-08000 Available to backorder	Hex Nut 8mm	£3.56 £2.97
18	HP94520-28000 Available to backorder	Internal Circlip 28mm	£2.44 £2.03
19	HP95701-0601200 In stock	Bolt	£0.97 £0.81
20	HP957001-061600 Available to backorder	Bolt	£1.12 £0.93
21	HP95701-06020-00 Available to backorder	Bolt	£1.32 £1.10
22	HP96100-6001000 Available to backorder	Bearing	£15.64 £13.03
