Honda HRB475K1 - SME - MZAZ 8100001-8199999 Handle Pipe Diagram

Description

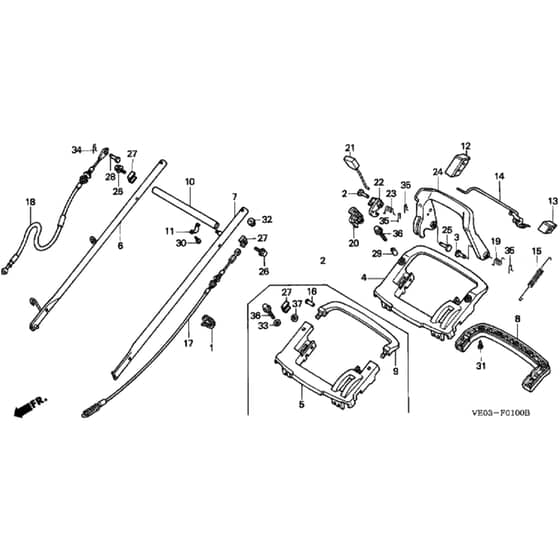

Honda HRB475K1 - SME Rotary Mower Parts Diagram

	Part No.	Details
1	HP32901-VE0-850 Available to backorder	Cable Tie	£6.20 £5.17
2	HP50603-KB4-000 Available to backorder	Pin	£8.14 £6.78
3	HP50603-MC4-000 Available to backorder	Pin	£7.91 £6.59
5	HP53110-VE2-L00 Available to backorder	Upper Handle	£124.20 £103.50
6	HP53150-VE0-J50ZA Available to backorder	Lower Handle	£49.78 £41.48
7	HP53160-VE0-B50ZA Available to backorder	Lower Handle	£27.40 £22.83
9	HP53165-VE2-L00 Available to backorder	Handle Grip	£49.18 £40.98
10	HP53168-VE0-000ZA Available to backorder	Connecting Pipe	£114.60 £95.50
11	HP53169-VE0-000 Available to backorder	Handle Connecting Plate	£4.87 £4.06
14	HP54410-VE0-M50ZA Available to backorder	Clutch Lever Assy	£27.84 £23.20
16	HP54413-VE2-L01 Available to backorder	Clutch Lever Pivot	£1.16 £0.97
17	HP54510-VE0-851 Available to backorder	Clutch Cable	£34.31 £28.59
18	HP54530-VE0-003 Available to backorder	Roto-Stop Cable	£28.24 £23.53
19	HP75118-VE0-000 Available to backorder	Stop Return Spring R H	£4.46 £3.72
20	HP75128-VE0-000 In stock	Cable Arm	Was £15.19 £12.66 Special Price £10.57 £8.81
21	HP75165-VE0-000 Available to backorder	Ratchet Push Rod	£9.34 £7.78
22	HP75166-VE0-000 Available to backorder	Lock Lever	£3.97 £3.31
23	HP75168-VE0-000 Available to backorder	Pawl Spring	£1.13 £0.94
24	HP75191-VE0-000 Available to backorder	Roto-Stop Lever	£57.95 £48.29
25	HP77226-750-003 Available to backorder	Pin	£6.48 £5.40
26	HP90101-VE0-000 Available to backorder	Handle Bolt	£2.98 £2.48
27	HP90501-898-000 In stock	Frame Joint Washer	£3.47 £2.89
28	HP90754-VA3-J00 Available to backorder	Cable Joint Pin	£4.14 £3.45
30	HP93911-24120 Available to backorder	Tapping Screw	£1.86 £1.55
33	HP94103-08000 In stock	Plain Washer 8Mm	£0.56 £0.47
34	HP94251-06000 In stock	Lock Pin 6Mm	£1.22 £1.02
35	HP94251-08000 In stock	Lock Pin 8Mm	£1.84 £1.53
36	HP95701-0804500 Available to backorder	Flange Bolt 8 X 45	£2.29 £1.91
37	HP90115-659-003 In stock	Nut	£1.19 £0.99
