Honda HRB475K1 - SME - MZAZ 8100001-8199999 Flywheel Diagram

Description

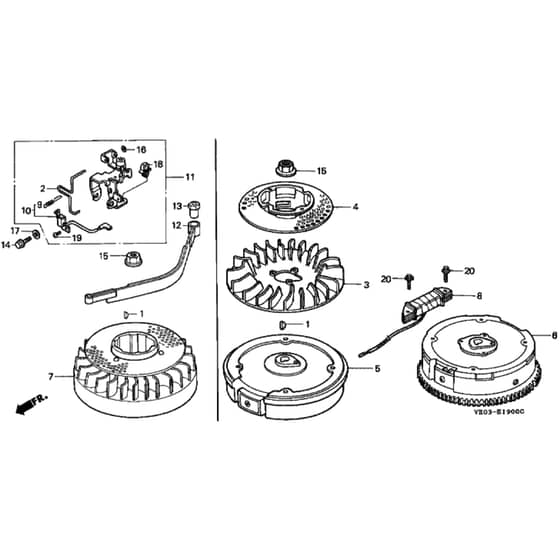

Honda HRB475K1 - SME Rotary Mower Parts Diagram

	Part No.	Details
1	HP13331-357-000 Available to backorder	Woodruff Key	£6.08 £5.07
3	HP19511-ZE6-T00 Available to backorder	Cooling Fan	£37.66 £31.38
4	HP28451-ZE6-T03 Available to backorder	Recoil Pulley	£24.77 £20.64
5	HP31100-ZE6-T01 Available to backorder	Flywheel Assy	£184.68 £153.90
6	HP31100-ZE6-802 Available to backorder	Flywheel Assy	£236.16 £196.80
8	HP31510-ZE2-H91 Available to backorder	Lamp Coil Assy	£67.08 £55.90
15	HP90201-878-003 Available to backorder	Special Nut 14mm	£7.09 £5.91
20	HP95701-0602800 Available to backorder	Flange Bolt 6 X 28	£1.55 £1.29
