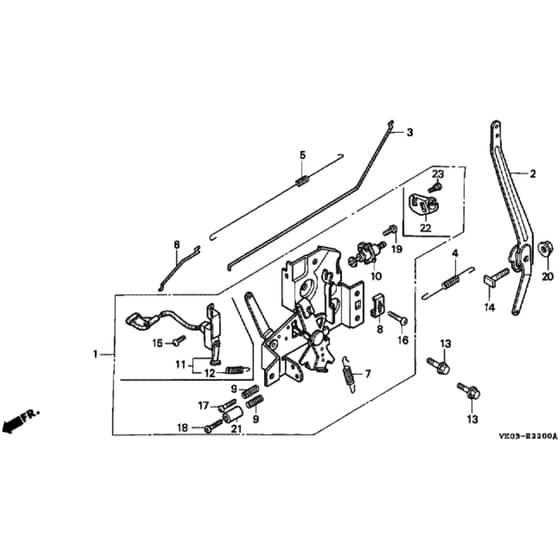

Honda HRB475K1 - SG - MZAZ 8100001-8199999 Control/Governor Arm Diagram

Name: Honda HRB475K1 - SG - MZAZ 8100001-8199999 Control/Governor Arm Diagram
SKU: hrb475k1_sg_mzaz_8100001_8199999_control_governor_arm-group
Price: 1.25 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475K1 - SG - MZAZ 8100001-8199999 Control/Governor Arm Diagram

Description

Honda HRB475K1 - SG Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16500-ZG9-N30 Available to backorder	Control	£107.32 £89.43
1	HP04102-ZG9-P50 Available to backorder	Control Assy Kit	£101.16 £84.30
1	HP16500-ZG9-P30 Available to backorder	Control	£97.02 £80.85
1	HP16500-ZG9-P71 Available to backorder	Control Assy	£94.92 £79.10
1	HP16500-ZG9-M01 Available to backorder	Control	£127.70 £106.42
1	HP16500-ZG9-R00 Available to backorder	Control	£97.02 £80.85
4	HP16561-ZE6-010 Available to backorder	Governor Spring	£4.06 £3.38
5	HP16562-ZE6-000 In stock	Throttle Return Spring	£5.28 £4.40
6	HP16573-ZE6-010 In stock	Choke Rod	£3.38 £2.82
8	HP16576-891-000 Available to backorder	Cable Holder	£3.85 £3.21
9	HP16584-883-300 Available to backorder	Control Adjusting Spring	£4.75 £3.96
10	HP16950-ZG9-M00 Available to backorder	Fuel Tap Assy	£40.42 £33.68
10	1271 In stock	Fuel Tap Assy	£5.06 £4.22
11	HP36100-ZG9-P31 Available to backorder	Engine Stop Switch Assy	£27.08 £22.57
12	HP36120-ZE6-010 In stock	Switch Control Spring	£2.54 £2.12
13	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.73 £3.11
14	HP90015-ZE5-010 Available to backorder	Governor Arm Bolt	£3.31 £2.76
15	HP93500-040080A Available to backorder	Screw	£1.50 £1.25
16	HP93500-050160A Available to backorder	Screw Pan 5X16	£1.50 £1.25
17	HP93500-050200A Available to backorder	Screw Pan 5X20	£1.50 £1.25
18	HP90016-ZG9-N30 Available to backorder	Recessed Screw 5 X 25	£4.52 £3.77
18	HP93500-05025-0A Available to backorder	Screw	£1.50 £1.25
19	HP93892-05012-00 Available to backorder	Screw	£1.50 £1.25
20	HP94050-06000 In stock	Flange Nut 6Mm	£3.22 £2.68
21	HP16599-ZG1-M10 Available to backorder	Stopper Collar	£2.59 £2.16
22	HP16956-ZM0-000 Available to backorder	Fuel Tap Bracket	£3.31 £2.76
23	HP90006-ZG9-M00 Available to backorder	Shoulder Bolt	£1.56 £1.30
