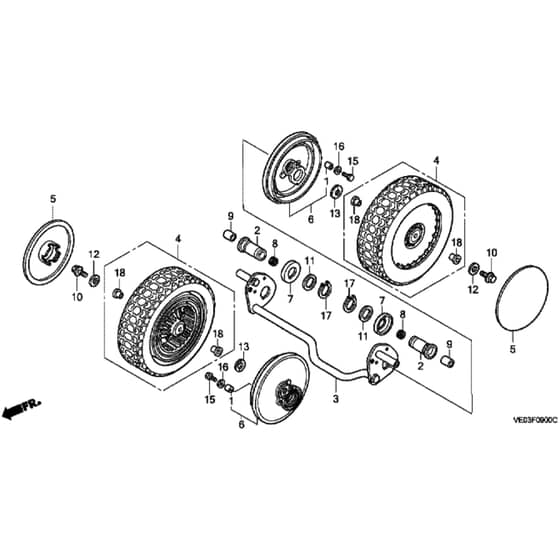

Honda HRB475K1 - SDE - MZAZ 8100001-8199999 Rear Wheel Diagram

Name: Honda HRB475K1 - SDE - MZAZ 8100001-8199999 Rear Wheel Diagram
SKU: hrb475k1_sde_mzaz_8100001_8199999_rear_wheel_hxe_sde_se_sg_sme_s
Price: 0.81 GBP
Availability: InStock

Part No. hrb475k1_sde_mzaz_8100001_8199999_rear_wheel_hxe_sde_se_sg_sme_s

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475K1 - SDE - MZAZ 8100001-8199999 Rear Wheel Diagram

Description

Honda HRB475K1 - SDE Rotary Mower Parts Diagram

	Part No.	Details
1	HP16598-ZG1-750 Available to backorder	Control Collar	£3.85 £3.21
2	HP41418-VE0-800 Available to backorder	Drive Shaft Collar	£14.96 £12.47
3	HP42310-VE0-800 Available to backorder	Axle Shaft	£90.84 £75.70
4	HP42710-VE0-800ZA Available to backorder	Rear Wheel	£47.66 £39.72
5	HP42719-VE0-851ZA Available to backorder	Hub Cap	£3.60 £3.00
6	HP42865-VE0-800ZA Available to backorder	Wheel Cover	£19.02 £15.85
7	HP42868-VA9-K40 Available to backorder	Wheel Cap	£1.57 £1.31
8	HP42944-VA2-702 Available to backorder	Dust Seal 12mm	£7.68 £6.40
9	HP44327-VA9-K41 Available to backorder	Drive Shaft Bush	£9.48 £7.90
10	HP90110-VA4-000 In stock	Wheel Bolt	£6.44 £5.37
11	HP90453-KA3-710 Available to backorder	Thrust Washer	£9.06 £7.55
12	HP90506-VA9-K41 Available to backorder	Wheel Washer	£4.24 £3.53
13	HP90505-VA9-K40 In stock	Washer 13mm	£2.20 £1.83
15	HP92101-050120A Available to backorder	Bolt	£1.04 £0.87
16	HP94101-05800 Available to backorder	Plain Washer 5mm	£0.97 £0.81
17	HP94510-20000 Available to backorder	External Circlip 20mm	£1.72 £1.43
18	HP42716-VE0-800 In stock	Wheel Bush	£3.97 £3.31
