Honda HRB475K1 - QXE - MZAZ 8100001- Rear Axle Shaft/Roller Diagram

Name: Honda HRB475K1 - QXE - MZAZ 8100001- Rear Axle Shaft/Roller Diagram
SKU: hrb475k1_qxe_mzaz_8100001_rear_axle_shaft_roller_qxe_-group
Price: 0.47 GBP
Availability: InStock

Part No. hrb475k1_qxe_mzaz_8100001_rear_axle_shaft_roller_qxe_-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475K1 - QXE - MZAZ 8100001- Rear Axle Shaft/Roller Diagram

Description

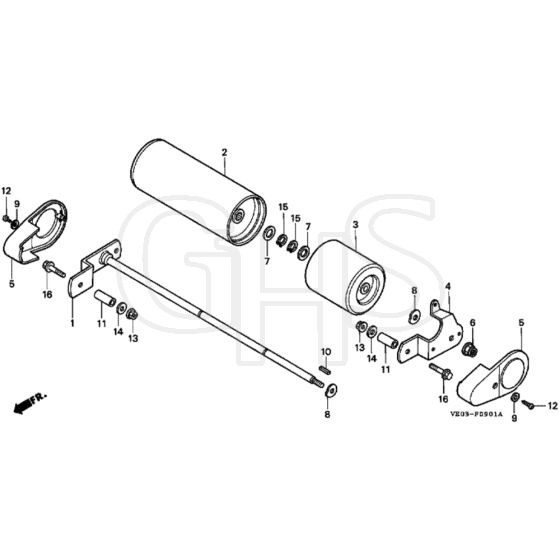

Honda HRB475K1 - QXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP42310-VE0-C50 Available to backorder	Shaft	£120.00 £100.00
2	HP42780-VA5-703 Available to backorder	Roller R H	£96.00 £80.00
4	HP42940-VE0-C50 Available to backorder	Adjuster Arm	£65.76 £54.80
6	HP90304-GBL-003 In stock	Nut 10Mm	£7.28 £6.07
7	HP90412-187-000 In stock	Washer	£6.05 £5.04
8	HP90455-VA5-700 In stock	Axle Washer	£5.80 £4.83
9	HP90483-178-000 Available to backorder	Washer	£3.38 £2.82
10	HP90741-715-000 Available to backorder	Flat Key	£14.17 £11.81
12	HP93903-35310 Available to backorder	Tapping Screw	£1.94 £1.62
13	HP94050-08000 In stock	Flange Nut 8Mm	£3.37 £2.81
14	HP94103-08000 In stock	Plain Washer 8Mm	£0.56 £0.47
15	HP94510-15000 In stock	External Circlip 15Mm	£1.57 £1.31
16	HP95801-0804500 Available to backorder	Flange Bolt 8 X 45	£2.44 £2.03
