Honda HRB475K1 - QXE - MZAZ 8100001- Control/Governor Arm Diagram

Description

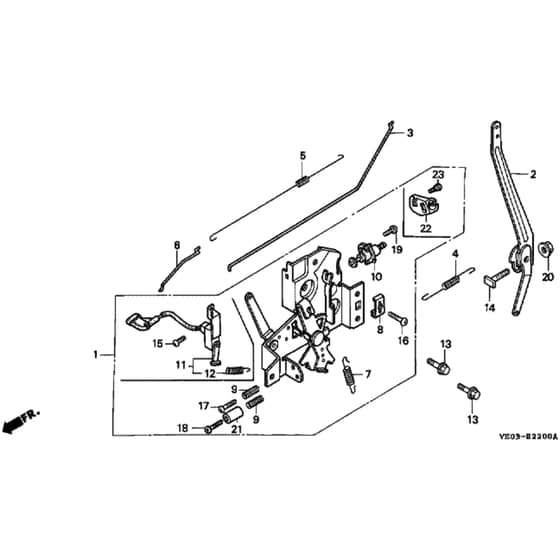

Honda HRB475K1 - QXE Rotary Mower Parts Diagram

	Part No.	Details
1	HP16500-ZG9-N30 Available to backorder	Control (ser no. 8119884 +)	£107.28 £89.40
1	HP16500-ZG9-M01 Available to backorder	Control (up to ser no. 8119883)	£127.68 £106.40
4	HP16561-ZE6-010 In stock	Governor Spring	£4.36 £3.63
5	HP16562-ZE6-000 In stock	Throttle Return Spring	£5.76 £4.80
6	HP16573-ZE6-010 In stock	Choke Rod	£3.62 £3.02
8	HP16576-891-000 Available to backorder	Cable Holder	£3.89 £3.24
9	HP16584-883-300 Available to backorder	Control Adjusting Spring	£4.80 £4.00
10	HP16950-ZG9-M00 Available to backorder	Fuel Tap Assy	£40.79 £33.99
12	HP36120-ZE6-010 Available to backorder	Switch Control Spring	£2.63 £2.19
13	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.77 £3.14
14	HP90015-ZE5-010 Available to backorder	Governor Arm Bolt	£3.35 £2.79
15	HP93500-040080A Available to backorder	Screw	£1.51 £1.26
16	HP93500-050160A Available to backorder	Screw Pan 5X16	£1.51 £1.26
17	HP93500-050200A Available to backorder	Screw Pan 5X20	£1.51 £1.26
18	HP90016-ZG9-N30 Available to backorder	Recessed Screw (ser no. 8115799 +)	£4.57 £3.81
18	HP93500-05025-0A Available to backorder	Screw (up to ser no. 8115798)	£1.51 £1.26
19	HP93892-05012-00 Available to backorder	Screw	£1.51 £1.26
20	HP94050-06000 In stock	Flange Nut 6mm	£3.37 £2.81
