Honda HRB475K1 - PG - MZAZ 8100001-8199999 Transmission (QXE) Diagram

Name: Honda HRB475K1 - PG - MZAZ 8100001-8199999 Transmission (QXE) Diagram
SKU: hrb475k1_pg_mzaz_8100001_8199999_transmission_qxe_-group
Price: 0.77 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475K1 - PG - MZAZ 8100001-8199999 Transmission (QXE) Diagram

Description

Honda HRB475K1 - PG Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP19612-896-750 Available to backorder	Fan Cover Collar	£2.20 £1.83
2	HP20001-VG0-A52 In stock	Transmission Assy	£471.12 £392.60
3	HP21511-VA5-700 Available to backorder	Transmission Case R H	£93.14 £77.62
4	HP21592-VA5-701 In stock	Transmission Case O Ring	£7.92 £6.60
6	HP21911-VA5-700 Available to backorder	Case Protector	£17.02 £14.18
7	HP22511-VE0-C50 Available to backorder	Transmission Guide	£23.30 £19.42
8	HP23120-VA5-700 Available to backorder	Drive Sprocket	£61.92 £51.60
9	HP23221-VA5-700 Available to backorder	Countershaft	£55.87 £46.56
10	HP23372-VA5-701 Available to backorder	Drive Sprocket	£121.62 £101.35
11	HP23411-VB3-810 Available to backorder	Bevel Pinion	£40.13 £33.44
12	HP23421-VA4-800 Available to backorder	Bevel Gear	£79.52 £66.27
13	HP23431-VA4-801 In stock	Driven Clutch	£35.26 £29.38
14	HP23436-VA5-701 In stock	Clutch Arm	£13.74 £11.45
15	HP23440-VA4-801 Available to backorder	Shift Shaft	£25.73 £21.44
16	HP23861-VA5-701 Available to backorder	Roller Chain	£73.44 £61.20
17	HP41103-935-003 In stock	Needle Bearing	£16.00 £13.33
18	HP90012-VA5-700 Available to backorder	Bolt Guide	£7.66 £6.38
19	HP90121-952-000 Available to backorder	Flange Bolt 6 X 25	£2.84 £2.37
20	HP61304-958-003 In stock	Nut	£6.16 £5.13

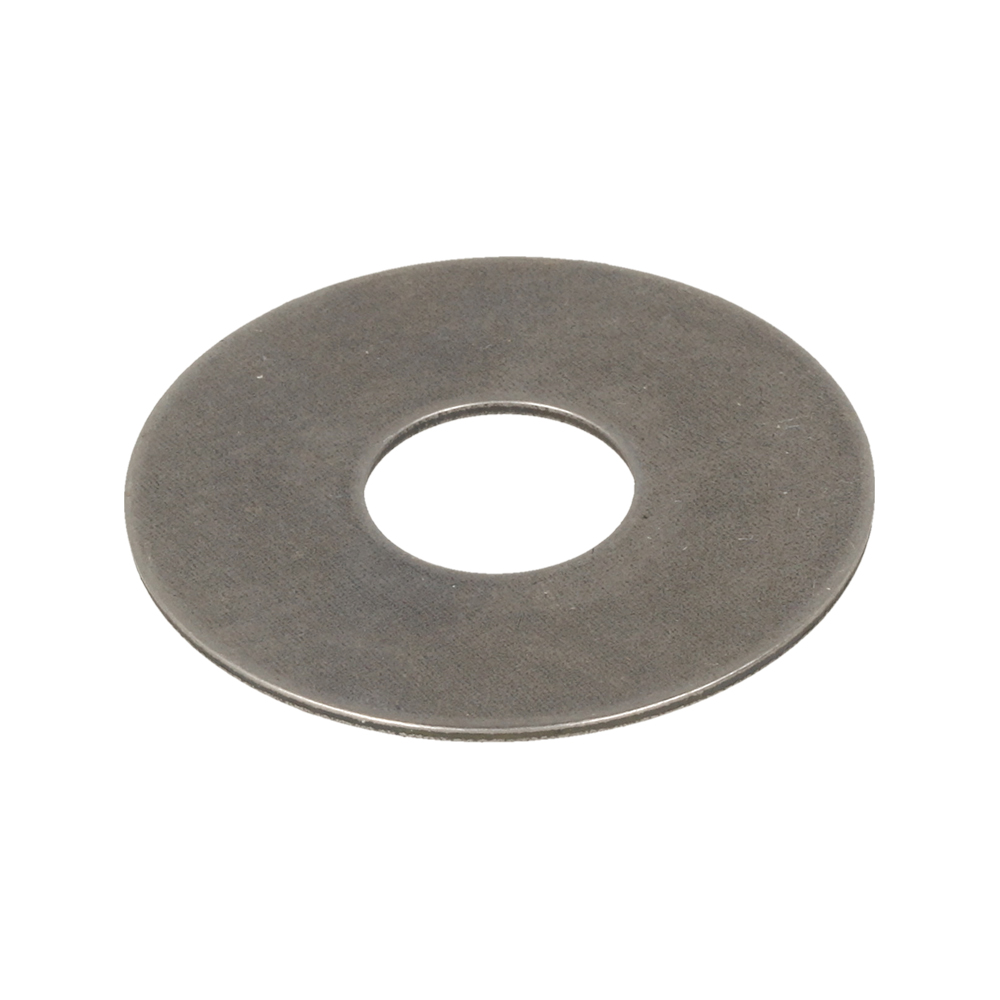

21	HP90452-VB5-800 Available to backorder	Thrust Washer 12Mm	£5.06 £4.22

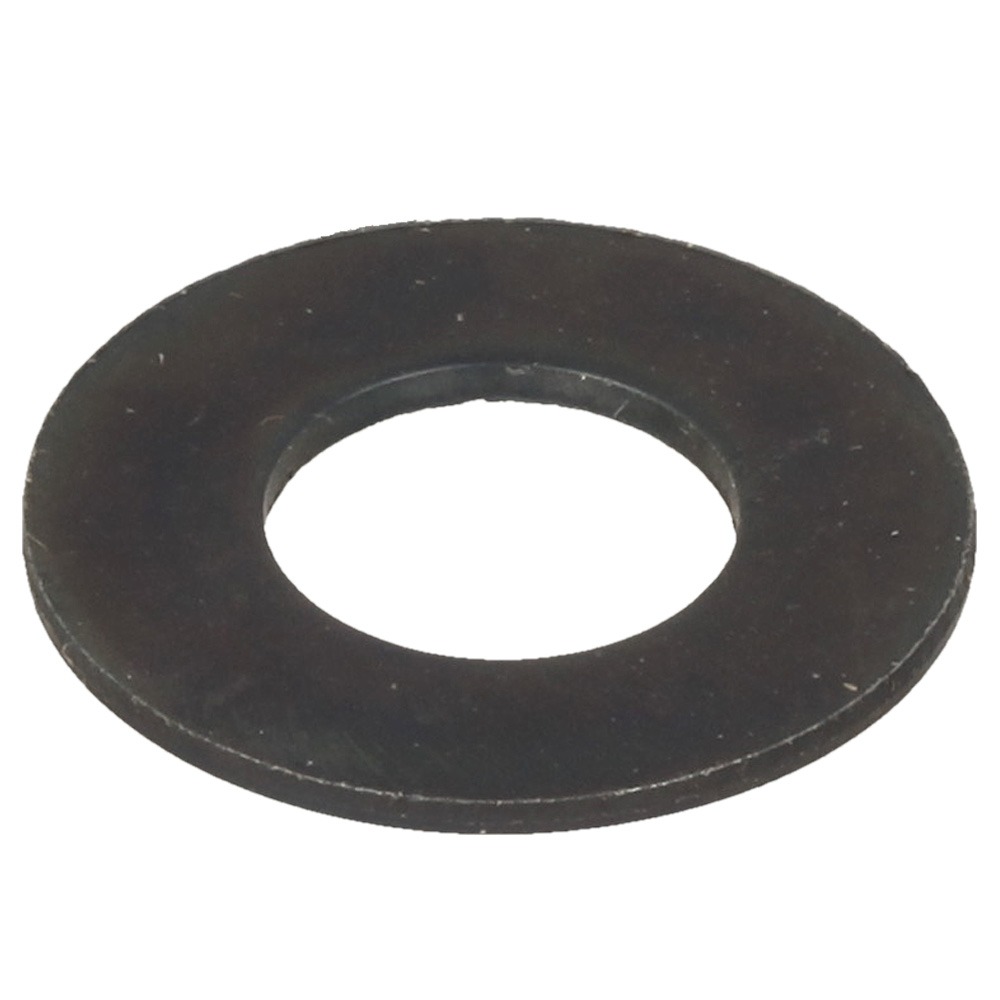

22	HP90452-187-000 Available to backorder	Washer	£4.63 £3.86
23	HP90458-729-920 Available to backorder	Thrust Washer 28Mm	£8.26 £6.88
24	HP91202-KA3-711 Available to backorder	Oil Seal	£5.42 £4.52
25	HP91201-ZE9-003 Available to backorder	Oil Seal 8 X 14 X 5	£4.30 £3.58
26	HP91251-VA5-701 In stock	Oil Seal 28 X 38 X 6	£8.96 £7.47
27	HP91252-VA5-701 In stock	Dust Seal	£8.80 £7.33
28	HP91554-VE0-C50 Available to backorder	Collar	£2.47 £2.06
29	HP93500-050200A Available to backorder	Screw Pan 5X20	£1.50 £1.25
29	HP92101-050200A Available to backorder	Bolt	£1.03 £0.86
30	HP94001-050000S Available to backorder	Hex Nut 5Mm	£3.22 £2.68
31	HP94050-06000 In stock	Flange Nut 6Mm	£3.22 £2.68
32	HP94301-08140 Available to backorder	Dowel Pin 8 X 14	£3.04 £2.53
33	HP94510-18000 Available to backorder	External Circlip 18Mm	£1.81 £1.51
34	HP94510-28000 In stock	External Circlip 28Mm	£3.52 £2.93
35	HP95701-0603200 Available to backorder	Bolt	£1.45 £1.21
36	HP95701-060-1800 Available to backorder	Flange Bolt	£0.92 £0.77
37	HP95701-060-2000 Available to backorder	Flange Bolt	£1.31 £1.09
38	HP90481-VB5-800 Available to backorder	Bevel Pinion Shim	£3.94 £3.28
38	HP90482-VB5-800 Available to backorder	Bevel Pinion Shim	£4.98 £4.15
38	HP90483-VB5-800 Available to backorder	Bevel Pinion Shim	£3.94 £3.28
