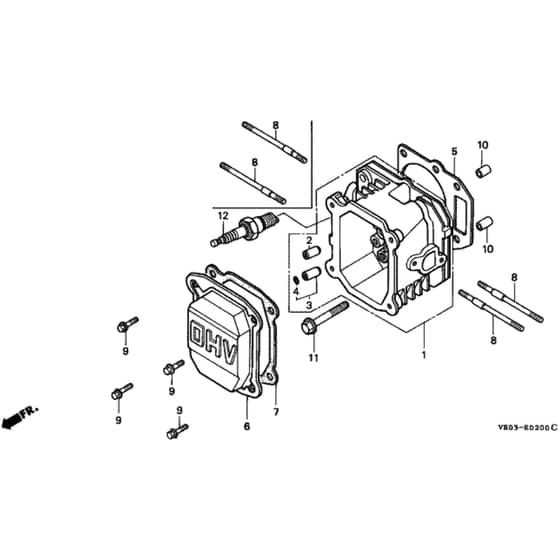

Honda HRB475K1 - PG - MZAZ 8100001-8199999 Cylinder Head Diagram

Description

Honda HRB475K1 - PG Rotary Mower Parts Diagram

	Part No.	Details
1	HP12200-ZG9-P41 Available to backorder	Cylinder Head Assy	£160.44 £133.70
2	HP12204-ZE1-306 Available to backorder	Inlet Valve Guide	£11.28 £9.40
3	HP12205-ZE1-315 Available to backorder	Exhaust Valve Guide	£12.71 £10.59
4	HP12216-ZE5-300 Available to backorder	Valve Guide Clip	£3.73 £3.11
5	HP12251-ZG9-000 Available to backorder	Cylinder Head Gasket	£11.34 £9.45
6	HP12311-ZG9-800 Out of stock	Rocker Cover	£23.38 £19.48
7	HP12391-ZG9-800 Available to backorder	Rocker Cover Gasket	£10.91 £9.09
7	HP12391-ZE7-M10 In stock	Rocker Cover Gasket	Was £15.44 £12.87 Special Price £9.59 £7.99
8	HP90013-ZG9-T00 Available to backorder	Stud 6 X 83	£5.06 £4.22
9	HP957001-061600 Available to backorder	Bolt	£1.12 £0.93
9	HP95701-0601400 Available to backorder	Flange Bolt 6 X 14	£0.94 £0.78
10	HP94301-10160 Available to backorder	Dowel Pin 10 X 16	£3.96 £3.30
11	HP95701-0805000 Available to backorder	Bolt	£2.38 £1.98
12	2136 In stock	Plug Spark (Bpr6Es) (Ngk)	£2.81 £2.34
12	2135 In stock	Spark Plug	£2.78 £2.32
12	7230 In stock	Spark Plug	£3.76 £3.13
