Honda HRB475K1 - PG - MZAZ 8100001-8199999 Brake Arm/Rotary Blade Diagram

Description

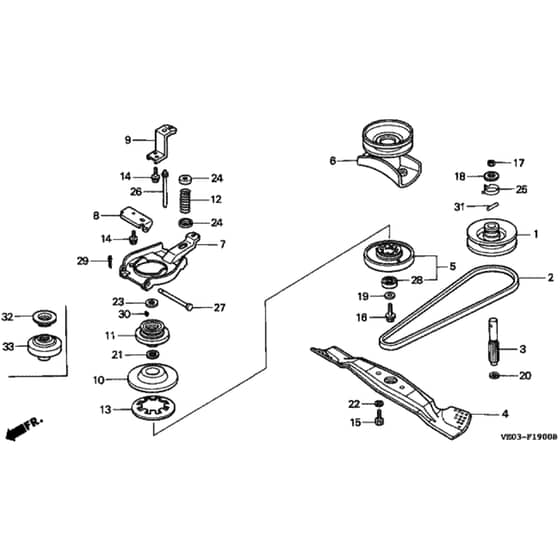

Honda HRB475K1 - PG Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP22420-VE0-800 In stock	Drive Pulley	£42.28 £35.23
1	HP22420-VE0-J50 Available to backorder	Pulley	£69.24 £57.70
1	HP22420-VE0-851 Available to backorder	Pulley	£30.85 £25.71
2	HP22431-VE0-800 Available to backorder	Belt	£35.12 £29.27
2	HP23161-VG8-800 Available to backorder	Belt	£25.78 £21.48
3	HP23411-VA9-K40 Available to backorder	Drive Gear	£57.24 £47.70
5	HP72600-VE0-000 Available to backorder	Blade Holder Assy	£86.40 £72.00
6	HP72610-VE0-A50 Available to backorder	Blade Holder Assy	£47.54 £39.62
6	HP72610-VE0-750 Available to backorder	Blade Holder Assy	£39.64 £33.03
7	HP75130-VE0-020 Available to backorder	Brake Arm Assy	£88.08 £73.40
8	HP75148-VE0-000 Available to backorder	Clutch Arm Hinge	£7.34 £6.12
9	HP75149-VE0-000 Available to backorder	Holder	£24.72 £20.60
10	HP75151-VE0-000 Available to backorder	Driven Disk	£167.78 £139.82
11	HP06751-VE1-305 Available to backorder	Pulley Kit	£117.16 £97.63
12	HP75182-VE0-000 Available to backorder	Clutch Return Spring	£12.12 £10.10
13	HP75183-VE0-000 Available to backorder	Clutch Spring	£35.34 £29.45
14	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.73 £3.11
15	HP90105-960-710 In stock	Blade Bolt	£2.76 £2.30
16	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£4.08 £3.40
17	HP90304-GA6-003 Available to backorder	Nut	£4.92 £4.10
18	HP90405-KV3-000 Available to backorder	Thrust Washer	£3.71 £3.09
19	HP90409-952-000 In stock	Washer 10Mm	£1.10 £0.92
20	HP90443-844-000 Available to backorder	Thrust Washer 8Mm	£1.78 £1.48
21	HP90453-KZ4-000 Available to backorder	Thrust Washer	£5.16 £4.30
22	HP90481-430-000 In stock	Washer	£1.20 £1.00
23	HP90501-952-010 Available to backorder	Thrust Washer	£5.39 £4.49
24	HP90557-461-000 Available to backorder	Washer	£2.33 £1.94
25	HP90651-VD6-901 In stock	Clutch Shaft Clip	£6.13 £5.11
26	HP90701-VE0-000 Available to backorder	Spring Guide Pin	£17.44 £14.53
27	HP90756-735-000 Available to backorder	Bonnet Hinge Pin	£8.24 £6.87
28	HP91102-VA4-013 Available to backorder	Bearing	£25.38 £21.15
29	HP94201-20150 Available to backorder	Split Pin 2.0 X 15	£1.37 £1.14
30	HP94401-16150 In stock	Woodruff Key	£0.54 £0.45
31	HP96220-40178 In stock	Pin 4 X 17.8	£0.80 £0.67
32	HP75161-VE2-801 Available to backorder	Pulley	£82.72 £68.93
33	HP75162-VE2-801 Available to backorder	Pulley	£84.36 £70.30
