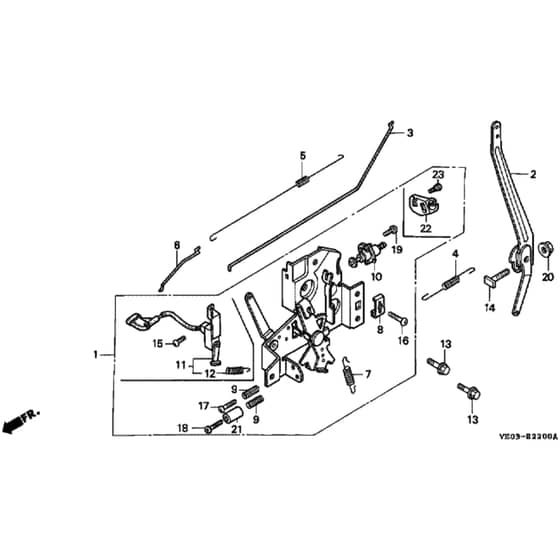

Honda HRB475K1 - HXE - MZAZ 8100001-8199999 Control/Governor Arm Diagram

Description

Honda HRB475K1 - HXE Rotary Mower Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	HP04102-ZG9-P50 Available to backorder	Control Assy Kit (ser no. 8248060 +)	£101.16 £84.30
4	HP16561-ZE6-010 Available to backorder	Governor Spring	£4.06 £3.38
5	HP16562-ZE6-000 Available to backorder	Throttle Return Spring	£5.28 £4.40
6	HP16573-ZE6-010 Available to backorder	Choke Rod	£3.38 £2.82
8	HP16576-891-000 Available to backorder	Cable Holder	£3.85 £3.21
9	HP16584-883-300 Available to backorder	Control Adjusting Spring	£5.16 £4.30
10	1271 In stock	Fuel Tap Assy (ser no. 8248060 +)	£5.06 £4.22
10	HP16950-ZG9-M00 Available to backorder	Fuel Tap Assy (up to ser 8248059)	£40.42 £33.68
13	HP90014-952-000 Available to backorder	Flange Bolt 6 X 14	£3.73 £3.11
14	HP90015-ZE5-010 Available to backorder	Governor Arm Bolt	£3.31 £2.76
16	HP93500-050160A Available to backorder	Screw Pan 5X16	£1.50 £1.25
17	HP93500-050200A Available to backorder	Screw Pan 5X20	£1.50 £1.25
19	HP93892-05012-00 Available to backorder	Screw	£1.50 £1.25
20	HP94050-06000 In stock	Flange Nut 6Mm	£3.22 £2.68
21	HP16599-ZG1-M10 Available to backorder	Stopper Collar (ser no. 8248060 +)	£2.59 £2.16
22	HP16956-ZM0-000 Available to backorder	Fuel Tap Bracket	£3.31 £2.76
23	HP90006-ZG9-M00 Available to backorder	Shoulder Bolt	£1.56 £1.30
