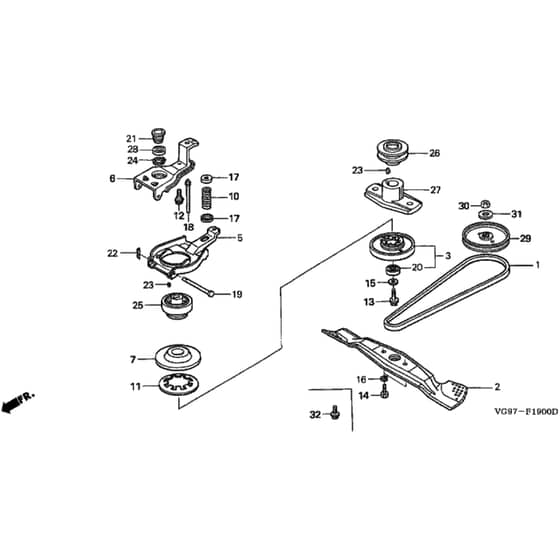

Honda HRB475C - SDEE - MZCE 8000001-8999999 Pulley/Rotary Blade Diagram

Name: Honda HRB475C - SDEE - MZCE 8000001-8999999 Pulley/Rotary Blade Diagram
SKU: hrb475c_sdee_mzce_8000001_8999999_pulley_rotary_blade-group
Price: 0.49 GBP
Availability: InStock

Part No. hrb475c_sdee_mzce_8000001_8999999_pulley_rotary_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475C - SDEE - MZCE 8000001-8999999 Pulley/Rotary Blade Diagram

Description

Honda HRB475C - SDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP22431-VE0-L02 In stock	Belt	£32.34 £26.95
13	HP90105-VA3-J01 In stock	Bolt Hex 10 X 25	£4.38 £3.65
14	HP90105-960-710 In stock	Blade Bolt	£2.99 £2.49
15	HP90409-952-000 In stock	Washer 10Mm	£1.21 £1.01
16	HP90481-430-000 In stock	Washer	£1.28 £1.07
23	HP94401-16150 In stock	Woodruff Key	£0.59 £0.49
26	HP75162-VG8-750 In stock	Pulley	£43.25 £36.04
27	HP72611-VG8-950 Available to backorder	Blade Holder	£46.84 £39.03
