Honda HRB475C - SDEE - MZCE 8000001-8999999 Handle Pipe Diagram

Name: Honda HRB475C - SDEE - MZCE 8000001-8999999 Handle Pipe Diagram
SKU: hrb475c_sdee_mzce_8000001_8999999_handle_pipe-group
Price: 0.81 GBP
Availability: InStock

Part No. hrb475c_sdee_mzce_8000001_8999999_handle_pipe-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Honda HRB475C - SDEE - MZCE 8000001-8999999 Handle Pipe Diagram

Description

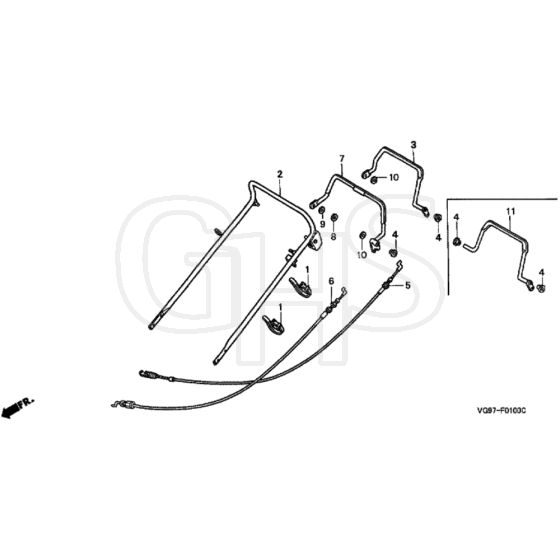

Honda HRB475C - SDEE Rotary Mower Parts Diagram

	Part No.	Details
1	HP32901-VE0-850 Available to backorder	Cable Tie	£6.20 £5.17
2	HP53110-VG9-750ZA Available to backorder	Upper Handle	£124.20 £103.50
3	HP54410-VA9-K40 Available to backorder	Clutch Lever Assy	£53.48 £44.57
4	HP54412-952-770 Available to backorder	Clutch Lever Bush	£4.55 £3.79
5	HP54510-VA9-E51 Available to backorder	Clutch Cable	£25.16 £20.97
6	HP54530-VG9-751 Available to backorder	O.P.C Cable	£27.26 £22.72
7	HP75190-VG9-750 Available to backorder	Brake Lever	£98.52 £82.10
8	HP90407-VA9-K40 In stock	Special Washer 8mm	£1.85 £1.54
9	HP90507-921-000 Available to backorder	Washer	£2.14 £1.78
10	HP94101-08000 Available to backorder	Plain Washer 8Mm	£0.97 £0.81
11	HP54410-VG8-000 Available to backorder	Clutch Lever	£31.40 £26.17
